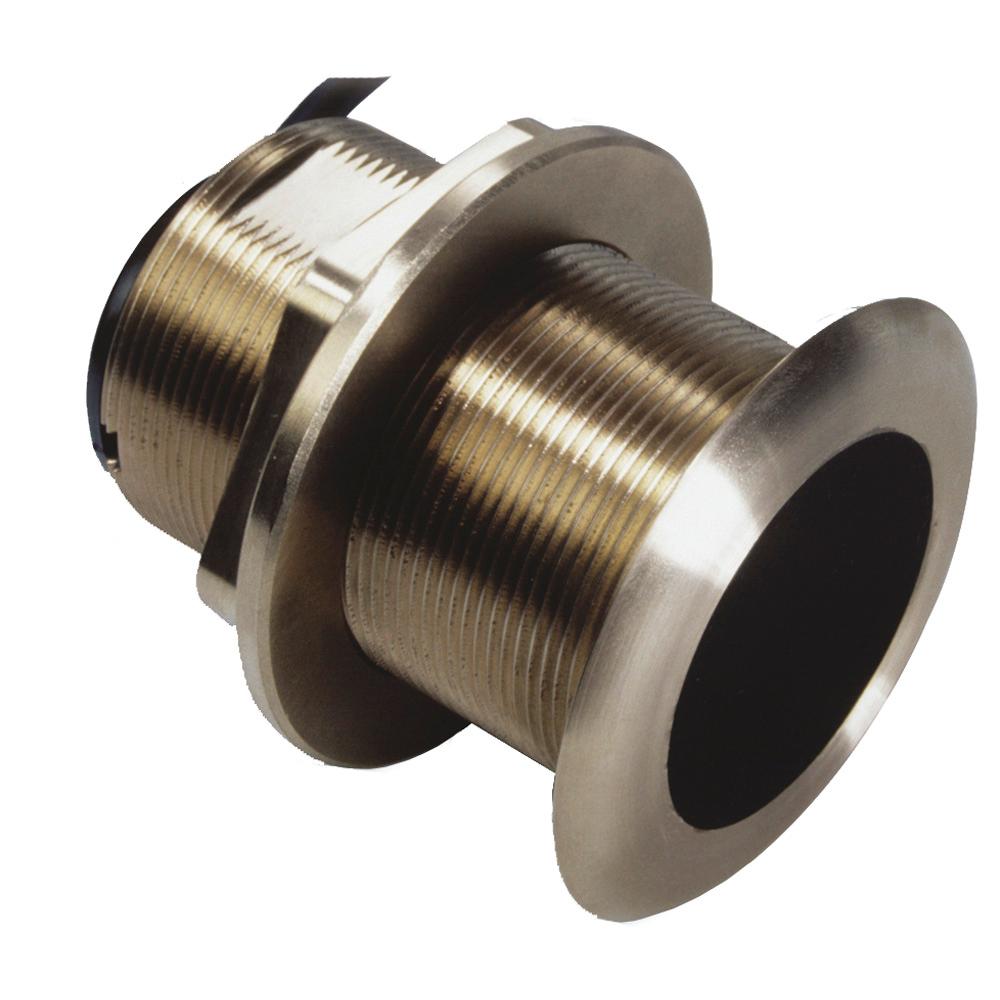

Navico B60-20, 20 Tilted Element Transducer - B60-20-BL
Loading...
Navico B60-20, 20 Tilted Element Transducer - B60-20-BL
SKU:
PV002415
$390.00
Unit price /
Unavailable
Navico B60-20, 20 Tilted Element Transducer - B60-20-BL is backordered and will ship as soon as it is back in stock.
This product could earn you
points
Learn more about PartsVu rewards
Learn more about PartsVu rewards
Size chart content page
Navico B60-20, 20 Tilted Element Transducer - B60-20-BL
$390.00
Unit price /
Unavailable
Description
Description
B60 Tilted Element 20
20 titled version is designed for 16 - 24 deadrise angles
The bronze B60-20 provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.
Compatible with Lowrance HDS Series and Simrad NSE Series Multifunction Display units.
Features:
20 titled version is designed for 16 - 24 deadrise angles
The bronze B60-20 provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.
Compatible with Lowrance HDS Series and Simrad NSE Series Multifunction Display units.
Features:
- Depth/Temp
- 50/200 kHz
- 600w RMS
- Mid-performance
- 7 Pin Blue Connector
- Bronze
