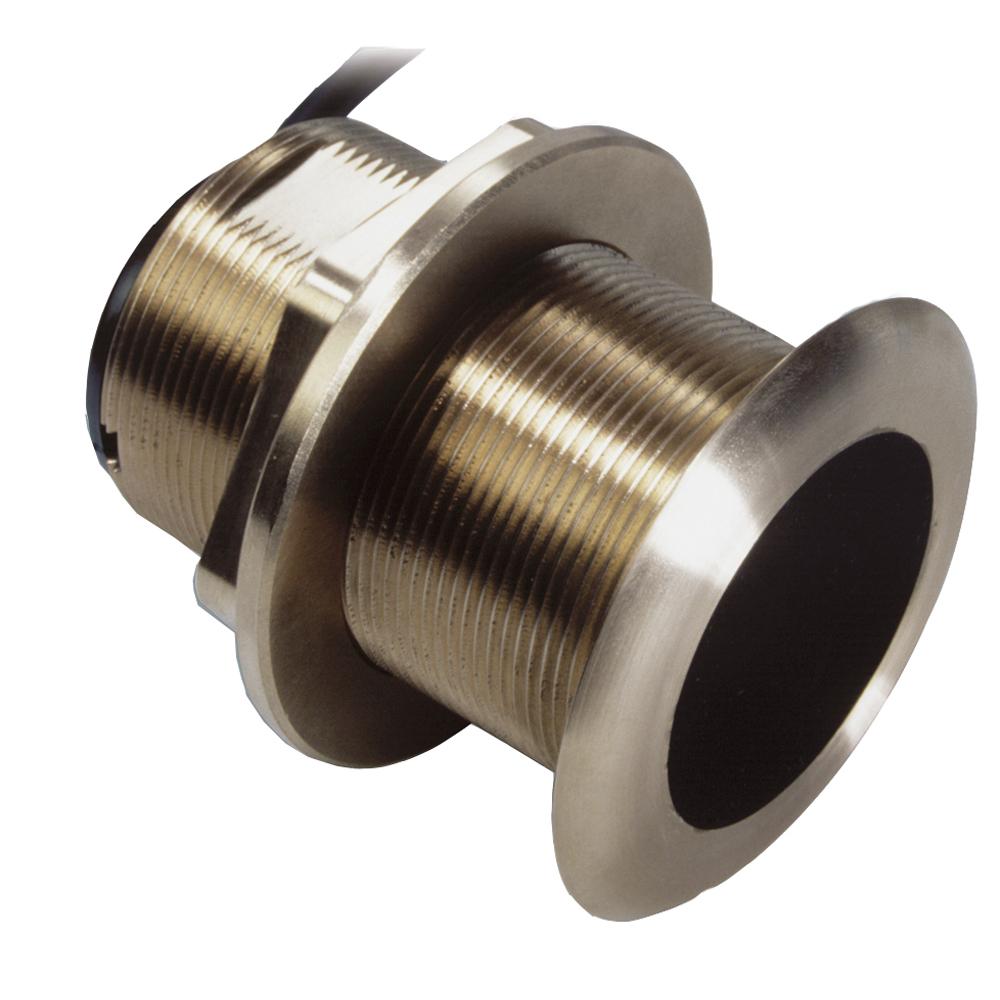

Raymarine - B60-12, 12 Degree Tilted Element Transducer f/DSM250 / DSM30 / DSM300 / DSM300G / CP300 - E66086

The B60 is a bronze, dual-frequency (50/200 kHz) through hull transducer with tilted element technology that compensates for the boat's hull deadrise, eliminating the need for a fairing block. The transducer mounts nearly flush to the boat's hull reducing drag and improving water flow. Built-in deadrise compensation keeps the main focus of the beam pointing straight down, resulting in strong echo returns and accurate depth readings. The B60 also has a built-in water temperature sensor.

The B60 is ideal for inshore or coastal fishing in shallow to medium depths. Its combination for frequencies and beams make it ideal for slow trolling, structure fishing and drifting. This is also a great choice for deep-water lake fishing.

The bronze through-hull fitting is ideal for wood or fiberglass hulls.

The B60 comes fitted with a Raymarine 8-pin "DSM-style" connector that is directly compatible with the CP370 sonar module and legacy CP300, DSM300, DSM30 and DSM250 modules. B60 can be adapted to work with other systems using optional transducer adapter cables, sold separately.

For use with Raymarine DSM250/DSM300/DSM300G/DSM30/CP300

The bronze B60-12 provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.

Features:

• 12 titled version is designed for 8 - 15 deadrise angles
• Depth/Temp
• 50/200 kHz
• 600w RMS
• Mid-performance
• Bronze
