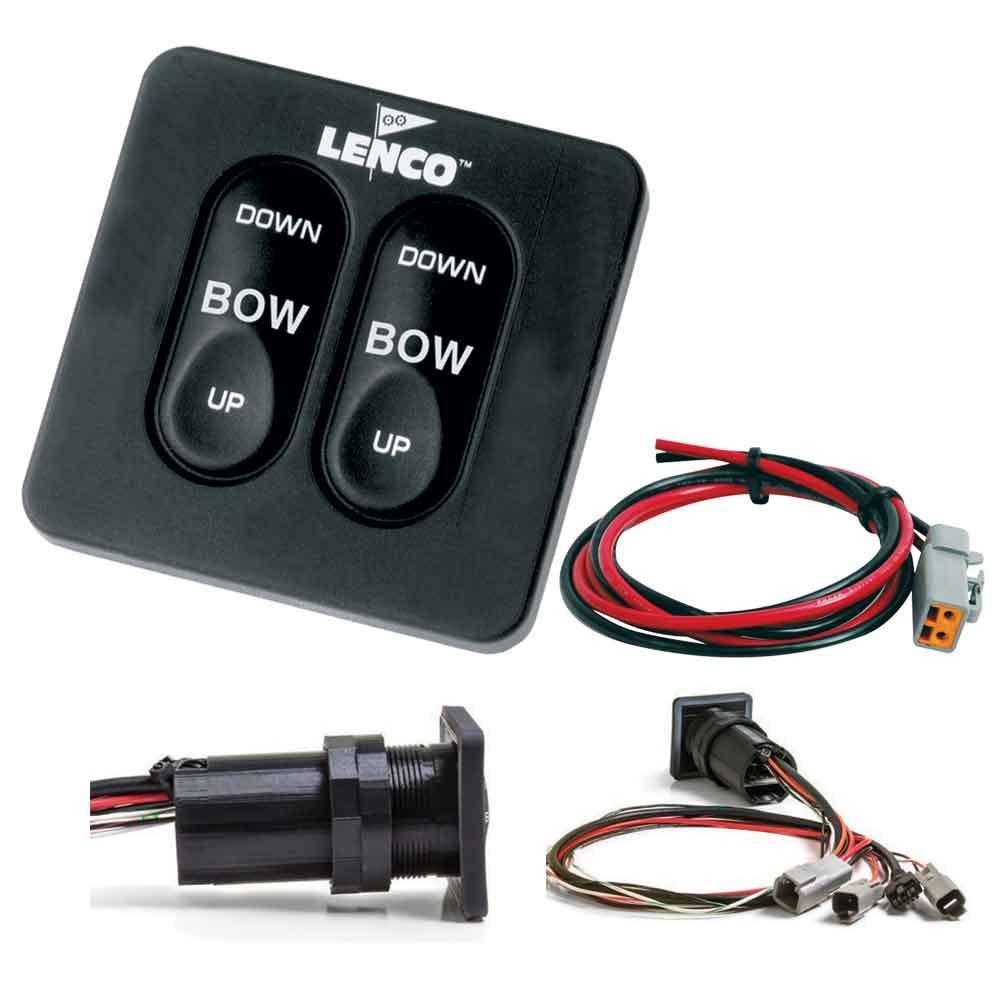

Standard Integrated Tactile Switch Kit with Pigtail for Single Actuator Systems

Complete your Lenco single actuator trim tab system with the latest, maintenance-free (ALL-IN-ONE) integrated tactile switch kit design. This NEW switch technology improves accuracy and integrates the control box functionality into the key pad bezel.

Features Include

• Simple, quick, Plug & Play installation
• Instant response
• Built-in retractor
• Low profile design
• Self-contained key pad with waterproof Plug & Play Deutsch connectors
• Wiring harness length 30" (76.2 cm) from the back of the switch bezel
• 36" power pigtail
• 2 1/16" hole cut-out size, overall key pad size of 2.75" x 2.75"
• 4.08" clearance required from the back of the key pad's mounting location

ATTENTION: REPLACEMENT KEY PADS & CONTROL BOXES FOR 2016 & PRIOR SWITCHES ARE NOT COMPATIBLE WITH THIS SWITCH KIT.

Replacement parts are available and are sold separately.

Specifications

• 3 Year Warranty
• System Type: Single Actuator
• Compliance: CE Certified

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
