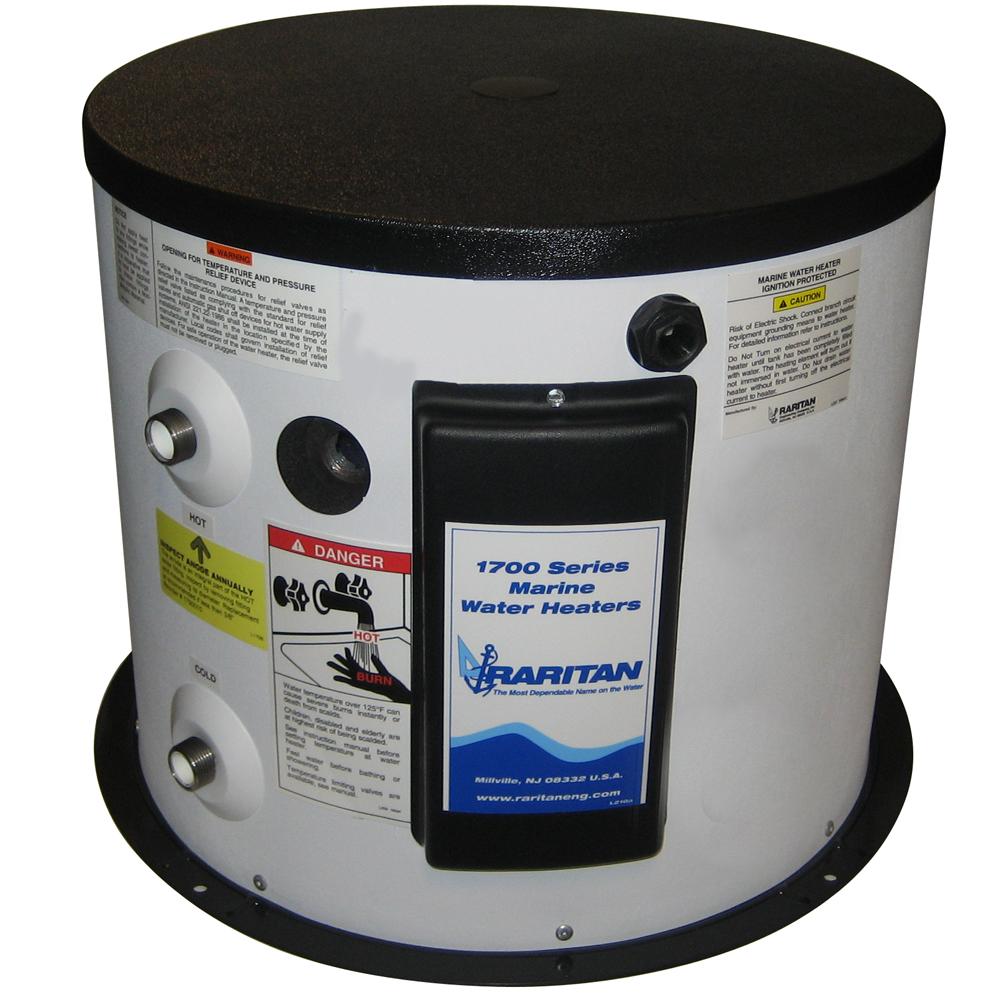

Raritan - Hot Water Heater without Heat Exchanger - 12-Gallon - 120v - 171201

• 120v
• 12 Gallon
• W/O Engine Heat Exchanger

The "1700 Series" water heater provides hot water for galley and shower. Dense foam insulation provides better and longer heat retention than traditional fiberglass. The tank itself is protected by a 75 PSI T& P ( temperature and pressure) relief valve. The cylindrical design of the tank enables it to withstand more pressure than a cube shaped tank.

Heat exchanger models can be connected to the engine cooling system. This provides the added convenience of hot water when underway or generator power is not available. The innovative heat exchanger is over seven feet in length and is evenly coiled throughout the interior of the tank, providing hot water rapidly and efficiently.

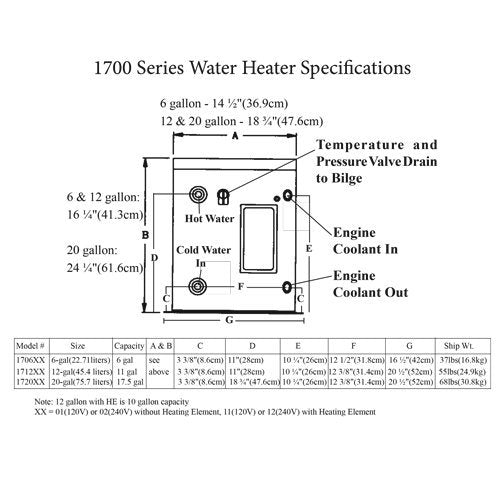

Raritan's water heaters use an ignition protected thermostat. Although it is factory set to 120F, it is adjustable from 110 to 160F and has a safety shut down limit of 190F. All models and sizes have the plumbing connections on the same side to simplify installation. Hot and cold water connections are 3/4" male NPT (National Pipe Thread). Heat exchanger connections are 3/4" female NPT.

Benefits:

• Simple installation - retrofits to most on-board pressure systems
• Proven long-life design
• Withstands the rigors of the marine environment
• Glass-lined steel tank is more durable than stainless steel
• Attractive polymer jacket resists corrosion from dampness
• Ignition-protected, adjustable thermostat
• Round tanks are designed to withstand more pressure than square tanks
• Glass-lined steel tank for long life and high efficiency
• Environmentally friendly CFC-free foam insulation
• Replaceable magnesium anode to protect tank and neutralize acids in the water
• The tank is covered by a five-year Limited Warranty
• Each unit is assembled by hand, individually tested and backed by Raritan's two-year Limited Warranty and legendary technical support team

About:

A marine water heater is simply a small, insulated tank downstream of the pump. You must have a pressurized water system to operate a water heater. The pump draws water from the storage tank(s) and fills the water heater tank. Inside the water heater is an electrical heating element and usually a coiled tube called a heat exchanger. When AC power is available, the electrical element (controlled by a thermostat) heats the water. Away from the dock, the hot engine coolant is routed through the coiled tube to heat the water in the tank when the engine is running.

Water heaters have four threaded ports.The tank inlet connects via a tee-connector to the outlet hose from the pump. A check valve is required in this line or in the heater to prevent hot water from migrating back toward the pump.The outlet connection supplies heated water to the hot side of all faucets, also using tee-connectors. The other two ports are for the heat exchanger connection, which varies depending on engine installation.Use only metal fittings to plumb a water heater, never plastic. If a pressure-release valve isn't integral, the heater will have a fifth port for this essential component.

Raritan's 1700 Series Water Heaters are built for the long haul. A glass lined steel tank and a rust proof jacket keep the Raritan water heater looking great and lasting for many years. Research has shown that glass-lined steel tanks are more durable than tanks made from just stainless steel. To increase the longevity and fluctuations in water quality Raritan includes a sacrificial magnesium anode that ensures a long tank life.

High-density non-CFC foam insulation helps the tank to maintain the hot water longer, a plus if you don't want to run the generator for hot water. In addition to the electric only units, Raritan offers units with Heat exchangers.The heat exchanger allows the user to heat water when underway by circulating engine cooling fluid through the almost 7 foot long coil within the tank.

Raritan engineered the 1700 series from the ground up to perform in a marine environment.The dockside recovery rate is 13 gallons per hour. With a 240V heating element it can go as high as 18 gallons per hour. Because the heater includes an adjustable thermostat it can be set as high as 160^o F. Hot water at 160^o when mixed with cold water can greatly extend the usable capacity of the tank.

Installation of the 1700 Series Water Heaters is simple and straight-forward with all plumbing connection on one side. It retrofits without difficulty to most on board pressure systems.Hot and cold water fittings are standard ¾â€ male NPT and the heat exchanger's ¾â€ female NPT. Available in 6, 12 or 20 gallon configurations.
