#Year-2021|Model-T9.9XWHB
Our 212-cc 9.9-hp portable is an impressive little outboard with a short tiller handle for increased comfort and the option of manual or electric start. The F9.9 platform is so popular, we also offer it with new pearlescent white styling, or in a high-thrust T9.9 format. The high-thrust model offers the option of a 25-inch shaft and a V MAX SHO sport cowling when used as a kicker on a multi-species boat.
Yamaha’s 8-hp Portable has stepped up its displacement to 212cc, joining its 9.9-hp big bro. Still, both feature light weights under 90 pounds, for one of the most impressive power-to-weight ratios in the horsepower class.
Features:
- Color - Gray
- Only 87 pounds
- Shaft Length - 25”
- Solid 6-amp alternator
Solid and Dependable
Incoming air is routed through the Air Intake Labyrinth System that traps and drains water before it enters the engine's intake for maximum reliability.
Optimal Operation
A CDI Microcomputer Ignition monitors throttle position, engine speed and atmospheric conditions in order to precisely adjust ignition timing under all conditions for optimum ignition performance, ensuring smooth and reliable operation.
Engine Warning System
Protects the outboard with a range of functions including: overheat protection and low-oil-pressure warning (automatically reducing maximum RPM to 2000), over-rev protection, start-in-gear protection and shift-in prevention at open throttle.
Corrosion Protection
Combined with our proprietary alloy (YDC-30), our exclusive Phaze Five™ anti-corrosive paint system provides a tough, five-layer barrier against corrosion. This protection is standard on all Yamaha outboards.
| Weight |
39 kg (87 lbs) - 42 kg (93 lbs) |
| Full Throttle RPM Range |
5000 ~ 6000 |
| Fuel Induction System |
Carb |
| Recommended Engine Oil |
Yamalube® 4M (See owner's manual) |
| Engine Type |
2 cyl |
| Displacement |
212cc |
| Bore x Stroke |
56 x 43mm (2.20 x 1.70 in.) |
| Prop Shaft Horsepower |
9.9hp @ 5500rpm |
| Alternator Output at W.O.T. |
6 |
| Color |
Gray |
| Compression Ratio |
9.4:1 |
| Recommended Fuel |
Octane 87 |
| Recommended Fuel Filtration |
Yamaha 10-Micron Fuel/Water Separating Filter (external) |
| C.A.R.B. Rating |
3-Star |
| Exhaust |
Through Propeller |
| Intake |
4 |
| Ignition |
CDI Microcomputer |
| Spark Plug |
BR6HS-10 |
| Starting System |
Electric & Manual |
| Lubrication |
Wet Sump |
| Engine Oil Capacity |
0.8L |
| Recommended Cooling |
Thermostatic Control |
| Ethanol Blend Limit |
10% Maximum |
| Gear Ratio |
2.08:1 |
| Gear Shift |
Forward, Neutral, Reverse |
| Shaft Length |
25" |
| Degree of Tilt |
71° |
| Degree of Trim |
-4° through +16° |
| Mounting Centers |
N/A |
| Steering |
Tiller |
| Steering Angle (maximum) |
43° from center, either direction |
| Warranty |
Limited 3-Year Pleasure, 3-Year Government, 1-Year Commercial |
#Year-2022|Model-T9.9XWHB
Our 212-cc 9.9-hp portable is an impressive little outboard with a short tiller handle for increased comfort and the option of manual or electric start. The F9.9 platform is so popular, we also offer it with new pearlescent white styling, or in a high-thrust T9.9 format. The high-thrust model offers the option of a 25-inch shaft and a V MAX SHO sport cowling when used as a kicker on a multi-species boat.
Yamaha’s 8-hp Portable has stepped up its displacement to 212cc, joining its 9.9-hp big bro. Still, both feature light weights under 90 pounds, for one of the most impressive power-to-weight ratios in the horsepower class.
Features:
- Color - Gray
- Only 87 pounds
- Shaft Length - 25”
- Solid 6-amp alternator
Solid and Dependable
Incoming air is routed through the Air Intake Labyrinth System that traps and drains water before it enters the engine's intake for maximum reliability.
Optimal Operation
A CDI Microcomputer Ignition monitors throttle position, engine speed and atmospheric conditions in order to precisely adjust ignition timing under all conditions for optimum ignition performance, ensuring smooth and reliable operation.
Engine Warning System
Protects the outboard with a range of functions including: overheat protection and low-oil-pressure warning (automatically reducing maximum RPM to 2000), over-rev protection, start-in-gear protection and shift-in prevention at open throttle.
Corrosion Protection
Combined with our proprietary alloy (YDC-30), our exclusive Phaze Five™ anti-corrosive paint system provides a tough, five-layer barrier against corrosion. This protection is standard on all Yamaha outboards.
| Weight † |
39 kg (87 lbs) - 42 kg (93 lbs) |
| Full Throttle RPM Range |
5000 ~ 6000 |
| Fuel Induction System |
Carb |
| Recommended Engine Oil |
Yamalube® 4M (See owner's manual) |
| Engine Type |
2 cyl |
| Displacement |
212cc |
| Bore x Stroke |
56 x 43mm (2.20 x 1.70 in.) |
| Prop Shaft Horsepower |
9.9hp @ 5500rpm |
| Alternator Output at W.O.T. |
6 |
| Color |
Gray |
| Compression Ratio |
9.4:1 |
| Recommended Fuel |
Octane 87 |
| Recommended Fuel Filtration |
Yamaha 10-Micron Fuel/Water Separating Filter (external) |
| C.A.R.B. Rating |
3-Star |
| Exhaust |
Through Propeller |
| Intake |
4 |
| Ignition |
CDI Microcomputer |
| Spark Plug |
BR6HS-10 |
| Starting System |
Electric & Manual |
| Lubrication |
Wet Sump |
| Engine Oil Capacity |
0.8L |
| Recommended Cooling |
Thermostatic Control |
| Ethanol Blend Limit |
10% Maximum |
| Gear Ratio |
2.08:1 |
| Gear Shift |
Forward, Neutral, Reverse |
| Shaft Length |
25" |
| Degree of Tilt |
71° |
| Degree of Trim |
-4° through +16° |
| Mounting Centers |
N/A |
| Steering |
Tiller |
| Steering Angle (maximum) |
43° from center, either direction |
| Warranty |
Limited 3-Year Pleasure, 3-Year Government, 1-Year Commercial |
#Year-2021|Model-T9.9XPHB
Our 212-cc 9.9-hp portable is an impressive little outboard with a short tiller handle for increased comfort and the option of manual or electric start. The F9.9 platform is so popular, we also offer it with new pearlescent white styling, or in a high-thrust T9.9 format. The high-thrust model offers the option of a 25-inch shaft and a V MAX SHO sport cowling when used as a kicker on a multi-species boat.
Yamaha’s 8-hp Portable has stepped up its displacement to 212cc, joining its 9.9-hp big bro. Still, both feature light weights under 90 pounds, for one of the most impressive power-to-weight ratios in the horsepower class.
Features:
- Color - Gray
- Only 87 pounds
- Shaft Length - 25”
- Solid 6-amp alternator
Solid and Dependable
Incoming air is routed through the Air Intake Labyrinth System that traps and drains water before it enters the engine's intake for maximum reliability.
Optimal Operation
A CDI Microcomputer Ignition monitors throttle position, engine speed and atmospheric conditions in order to precisely adjust ignition timing under all conditions for optimum ignition performance, ensuring smooth and reliable operation.
Engine Warning System
Protects the outboard with a range of functions including: overheat protection and low-oil-pressure warning (automatically reducing maximum RPM to 2000), over-rev protection, start-in-gear protection and shift-in prevention at open throttle.
Corrosion Protection
Combined with our proprietary alloy (YDC-30), our exclusive Phaze Five™ anti-corrosive paint system provides a tough, five-layer barrier against corrosion. This protection is standard on all Yamaha outboards.
| Weight † |
39 kg (87 lbs) - 42 kg (93 lbs) |
| Full Throttle RPM Range |
5000 ~ 6000 |
| Fuel Induction System |
Carb |
| Recommended Engine Oil |
Yamalube® 4M (See owner's manual) |
| Engine Type |
2 cyl |
| Displacement |
212cc |
| Bore x Stroke |
56 x 43mm (2.20 x 1.70 in.) |
| Prop Shaft Horsepower |
9.9hp @ 5500rpm |
| Alternator Output at W.O.T. |
6 |
| Color |
Gray |
| Compression Ratio |
9.4:1 |
| Recommended Fuel |
Octane 87 |
| Recommended Fuel Filtration |
Yamaha 10-Micron Fuel/Water Separating Filter (external) |
| C.A.R.B. Rating |
3-Star |
| Exhaust |
Through Propeller |
| Intake |
4 |
| Ignition |
CDI Microcomputer |
| Spark Plug |
BR6HS-10 |
| Starting System |
Power Tilt and Electric Only
|
| Lubrication |
Wet Sump |
| Engine Oil Capacity |
0.8L |
| Recommended Cooling |
Thermostatic Control |
| Ethanol Blend Limit |
10% Maximum |
| Gear Ratio |
2.08:1 |
| Gear Shift |
Forward, Neutral, Reverse |
| Shaft Length |
25" |
| Degree of Tilt |
71° |
| Degree of Trim |
-4° through +16° |
| Mounting Centers |
N/A |
| Steering |
Tiller |
| Steering Angle (maximum) |
43° from center, either direction |
| Warranty |
Limited 3-Year Pleasure, 3-Year Government, 1-Year Commercial |
#Year-2022|Model-T9.9XPHB
Our 212-cc 9.9-hp portable is an impressive little outboard with a short tiller handle for increased comfort and the option of manual or electric start. The F9.9 platform is so popular, we also offer it with new pearlescent white styling, or in a high-thrust T9.9 format. The high-thrust model offers the option of a 25-inch shaft and a V MAX SHO sport cowling when used as a kicker on a multi-species boat.
Yamaha’s 8-hp Portable has stepped up its displacement to 212cc, joining its 9.9-hp big bro. Still, both feature light weights under 90 pounds, for one of the most impressive power-to-weight ratios in the horsepower class.
Features:
- Color - Gray
- Only 87 pounds
- Shaft Length - 25”
- Solid 6-amp alternator
Solid and Dependable
Incoming air is routed through the Air Intake Labyrinth System that traps and drains water before it enters the engine's intake for maximum reliability.
Optimal Operation
A CDI Microcomputer Ignition monitors throttle position, engine speed and atmospheric conditions in order to precisely adjust ignition timing under all conditions for optimum ignition performance, ensuring smooth and reliable operation.
Engine Warning System
Protects the outboard with a range of functions including: overheat protection and low-oil-pressure warning (automatically reducing maximum RPM to 2000), over-rev protection, start-in-gear protection and shift-in prevention at open throttle.
Corrosion Protection
Combined with our proprietary alloy (YDC-30), our exclusive Phaze Five™ anti-corrosive paint system provides a tough, five-layer barrier against corrosion. This protection is standard on all Yamaha outboards.
| Weight † |
39 kg (87 lbs) - 42 kg (93 lbs) |
| Full Throttle RPM Range |
5000 ~ 6000 |
| Fuel Induction System |
Carb |
| Recommended Engine Oil |
Yamalube® 4M (See owner's manual) |
| Engine Type |
2 cyl |
| Displacement |
212cc |
| Bore x Stroke |
56 x 43mm (2.20 x 1.70 in.) |
| Prop Shaft Horsepower |
9.9hp @ 5500rpm |
| Alternator Output at W.O.T. |
6 |
| Color |
Gray |
| Compression Ratio |
9.4:1 |
| Recommended Fuel |
Octane 87 |
| Recommended Fuel Filtration |
Yamaha 10-Micron Fuel/Water Separating Filter (external) |
| C.A.R.B. Rating |
3-Star |
| Exhaust |
Through Propeller |
| Intake |
4 |
| Ignition |
CDI Microcomputer |
| Spark Plug |
BR6HS-10 |
| Starting System |
Power Tilt & Electric
|
| Lubrication |
Wet Sump |
| Engine Oil Capacity |
0.8L |
| Recommended Cooling |
Thermostatic Control |
| Ethanol Blend Limit |
10% Maximum |
| Gear Ratio |
2.08:1 |
| Gear Shift |
Forward, Neutral, Reverse |
| Shaft Length |
25" |
| Degree of Tilt |
71° |
| Degree of Trim |
-4° through +16° |
| Mounting Centers |
N/A |
| Steering |
Tiller |
| Steering Angle (maximum) |
43° from center, either direction |
| Warranty |
Limited 3-Year Pleasure, 3-Year Government, 1-Year Commercial |
#Year-2023|Model-T9.9XPB2
Our 212-cc 9.9-hp portable is an impressive little outboard with a short tiller handle for increased comfort and the option of manual or electric start. The F9.9 platform is so popular, we also offer it with new pearlescent white styling, or in a high-thrust T9.9 format. The high-thrust model offers the option of a 25-inch shaft and a V MAX SHO sport cowling when used as a kicker on a multi-species boat.
Yamaha’s 8-hp Portable has stepped up its displacement to 212cc, joining its 9.9-hp big bro. Still, both feature light weights under 90 pounds, for one of the most impressive power-to-weight ratios in the horsepower class.
Features:
- Color - White
- Only 87 pounds
- Shaft Length - 25”
- Solid 6-amp alternator
Solid and Dependable
Incoming air is routed through the Air Intake Labyrinth System that traps and drains water before it enters the engine's intake for maximum reliability.
Optimal Operation
A CDI Microcomputer Ignition monitors throttle position, engine speed and atmospheric conditions in order to precisely adjust ignition timing under all conditions for optimum ignition performance, ensuring smooth and reliable operation.
Engine Warning System
Protects the outboard with a range of functions including: overheat protection and low-oil-pressure warning (automatically reducing maximum RPM to 2000), over-rev protection, start-in-gear protection and shift-in prevention at open throttle.
Corrosion Protection
Combined with our proprietary alloy (YDC-30), our exclusive Phaze Five™ anti-corrosive paint system provides a tough, five-layer barrier against corrosion. This protection is standard on all Yamaha outboards.
| Weight † |
39 kg (87 lbs) - 42 kg (93 lbs) |
| Full Throttle RPM Range |
5000 ~ 6000 |
| Fuel Induction System |
Carb |
| Recommended Engine Oil |
Yamalube® 4M (See owner's manual) |
| Engine Type |
2 cyl |
| Displacement |
212cc |
| Bore x Stroke |
56 x 43mm (2.20 x 1.70 in.) |
| Prop Shaft Horsepower |
9.9hp @ 5500rpm |
| Alternator Output at W.O.T. |
6 |
| Color |
White
|
| Compression Ratio |
9.4:1 |
| Recommended Fuel |
Octane 87 |
| Recommended Fuel Filtration |
Yamaha 10-Micron Fuel/Water Separating Filter (external) |
| C.A.R.B. Rating |
3-Star |
| Exhaust |
Through Propeller |
| Intake |
4 |
| Ignition |
CDI Microcomputer |
| Spark Plug |
BR6HS-10 |
| Starting System |
Power Tilt & Electric
|
| Lubrication |
Wet Sump |
| Engine Oil Capacity |
0.8L |
| Recommended Cooling |
Thermostatic Control |
| Ethanol Blend Limit |
10% Maximum |
| Gear Ratio |
2.08:1 |
| Gear Shift |
Forward, Neutral, Reverse |
| Shaft Length |
25" |
| Degree of Tilt |
71° |
| Degree of Trim |
-4° through +16° |
| Mounting Centers |
N/A |
| Steering |
Remote Control
|
| Steering Angle (maximum) |
43° from center, either direction |
| Warranty |
Limited 3-Year Pleasure, 3-Year Government, 1-Year Commercial |
#Year-2021|Model-T9.9LPB
Our 212-cc 9.9-hp portable is an impressive little outboard with a short tiller handle for increased comfort and the option of manual or electric start. The F9.9 platform is so popular, we also offer it with new pearlescent white styling, or in a high-thrust T9.9 format. The high-thrust model offers the option of a 25-inch shaft and a V MAX SHO sport cowling when used as a kicker on a multi-species boat.
Yamaha’s 8-hp Portable has stepped up its displacement to 212cc, joining its 9.9-hp big bro. Still, both feature light weights under 90 pounds, for one of the most impressive power-to-weight ratios in the horsepower class.
Features:
- Color - Gray
- Only 87 pounds
- Shaft Length - 20”
- Solid 6-amp alternator
Solid and Dependable
Incoming air is routed through the Air Intake Labyrinth System that traps and drains water before it enters the engine's intake for maximum reliability.
Optimal Operation
A CDI Microcomputer Ignition monitors throttle position, engine speed and atmospheric conditions in order to precisely adjust ignition timing under all conditions for optimum ignition performance, ensuring smooth and reliable operation.
Engine Warning System
Protects the outboard with a range of functions including: overheat protection and low-oil-pressure warning (automatically reducing maximum RPM to 2000), over-rev protection, start-in-gear protection and shift-in prevention at open throttle.
Corrosion Protection
Combined with our proprietary alloy (YDC-30), our exclusive Phaze Five™ anti-corrosive paint system provides a tough, five-layer barrier against corrosion. This protection is standard on all Yamaha outboards.
| Weight † |
39 kg (87 lbs) - 42 kg (93 lbs) |
| Full Throttle RPM Range |
5000 ~ 6000 |
| Fuel Induction System |
Carb |
| Recommended Engine Oil |
Yamalube® 4M (See owner's manual) |
| Engine Type |
2 cyl |
| Displacement |
212cc |
| Bore x Stroke |
56 x 43mm (2.20 x 1.70 in.) |
| Prop Shaft Horsepower |
9.9hp @ 5500rpm |
| Alternator Output at W.O.T. |
6 |
| Color |
Gray |
| Compression Ratio |
9.4:1 |
| Recommended Fuel |
Octane 87 |
| Recommended Fuel Filtration |
Yamaha 10-Micron Fuel/Water Separating Filter (external) |
| C.A.R.B. Rating |
3-Star |
| Exhaust |
Through Propeller |
| Intake |
4 |
| Ignition |
CDI Microcomputer |
| Spark Plug |
BR6HS-10 |
| Starting System |
Power Tilt & Electric
|
| Lubrication |
Wet Sump |
| Engine Oil Capacity |
0.8L |
| Recommended Cooling |
Thermostatic Control |
| Ethanol Blend Limit |
10% Maximum |
| Gear Ratio |
2.08:1 |
| Gear Shift |
Forward, Neutral, Reverse |
| Shaft Length |
20" |
| Degree of Tilt |
71° |
| Degree of Trim |
-4° through +16° |
| Mounting Centers |
N/A |
| Steering |
Remote Control
|
| Steering Angle (maximum) |
43° from center, either direction |
| Warranty |
Limited 3-Year Pleasure, 3-Year Government, 1-Year Commercial |
#Year-2022|Model-T9.9LPB
Our 212-cc 9.9-hp portable is an impressive little outboard with a short tiller handle for increased comfort and the option of manual or electric start. The F9.9 platform is so popular, we also offer it with new pearlescent white styling, or in a high-thrust T9.9 format. The high-thrust model offers the option of a 25-inch shaft and a V MAX SHO sport cowling when used as a kicker on a multi-species boat.
Yamaha’s 8-hp Portable has stepped up its displacement to 212cc, joining its 9.9-hp big bro. Still, both feature light weights under 90 pounds, for one of the most impressive power-to-weight ratios in the horsepower class.
Features:
- Color - Gray
- Only 87 pounds
- Shaft Length - 20”
- Solid 6-amp alternator
Solid and Dependable
Incoming air is routed through the Air Intake Labyrinth System that traps and drains water before it enters the engine's intake for maximum reliability.
Optimal Operation
A CDI Microcomputer Ignition monitors throttle position, engine speed and atmospheric conditions in order to precisely adjust ignition timing under all conditions for optimum ignition performance, ensuring smooth and reliable operation.
Engine Warning System
Protects the outboard with a range of functions including: overheat protection and low-oil-pressure warning (automatically reducing maximum RPM to 2000), over-rev protection, start-in-gear protection and shift-in prevention at open throttle.
Corrosion Protection
Combined with our proprietary alloy (YDC-30), our exclusive Phaze Five™ anti-corrosive paint system provides a tough, five-layer barrier against corrosion. This protection is standard on all Yamaha outboards.
| Weight † |
39 kg (87 lbs) - 42 kg (93 lbs) |
| Full Throttle RPM Range |
5000 ~ 6000 |
| Fuel Induction System |
Carb |
| Recommended Engine Oil |
Yamalube® 4M (See owner's manual) |
| Engine Type |
2 cyl |
| Displacement |
212cc |
| Bore x Stroke |
56 x 43mm (2.20 x 1.70 in.) |
| Prop Shaft Horsepower |
9.9hp @ 5500rpm |
| Alternator Output at W.O.T. |
6 |
| Color |
Gray |
| Compression Ratio |
9.4:1 |
| Recommended Fuel |
Octane 87 |
| Recommended Fuel Filtration |
Yamaha 10-Micron Fuel/Water Separating Filter (external) |
| C.A.R.B. Rating |
3-Star |
| Exhaust |
Through Propeller |
| Intake |
4 |
| Ignition |
CDI Microcomputer |
| Spark Plug |
BR6HS-10 |
| Starting System |
Power Tilt & Electric
|
| Lubrication |
Wet Sump |
| Engine Oil Capacity |
0.8L |
| Recommended Cooling |
Thermostatic Control |
| Ethanol Blend Limit |
10% Maximum |
| Gear Ratio |
2.08:1 |
| Gear Shift |
Forward, Neutral, Reverse |
| Shaft Length |
20" |
| Degree of Tilt |
71° |
| Degree of Trim |
-4° through +16° |
| Mounting Centers |
N/A |
| Steering |
Remote Control
|
| Steering Angle (maximum) |
43° from center, either direction |
| Warranty |
Limited 3-Year Pleasure, 3-Year Government, 1-Year Commercial |

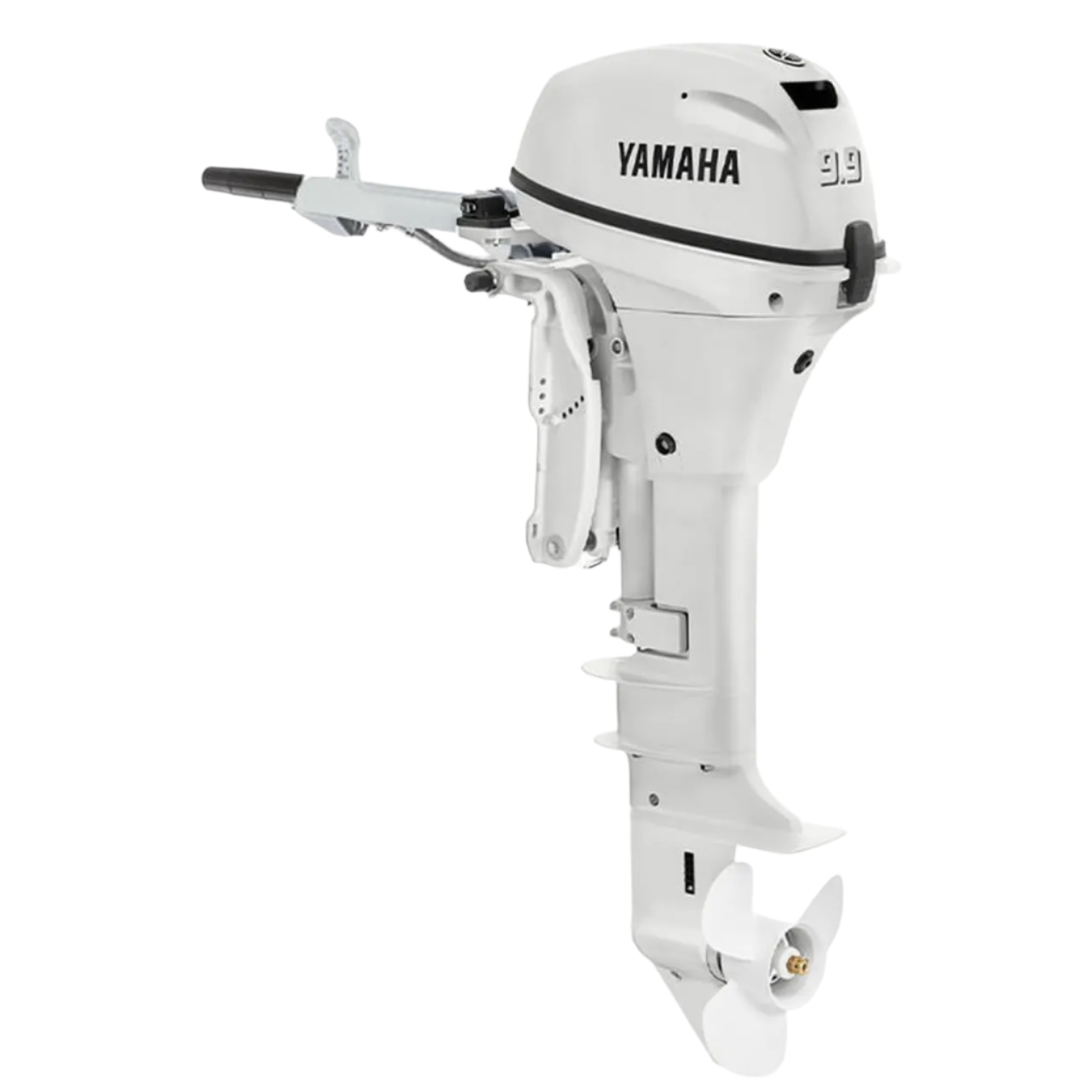

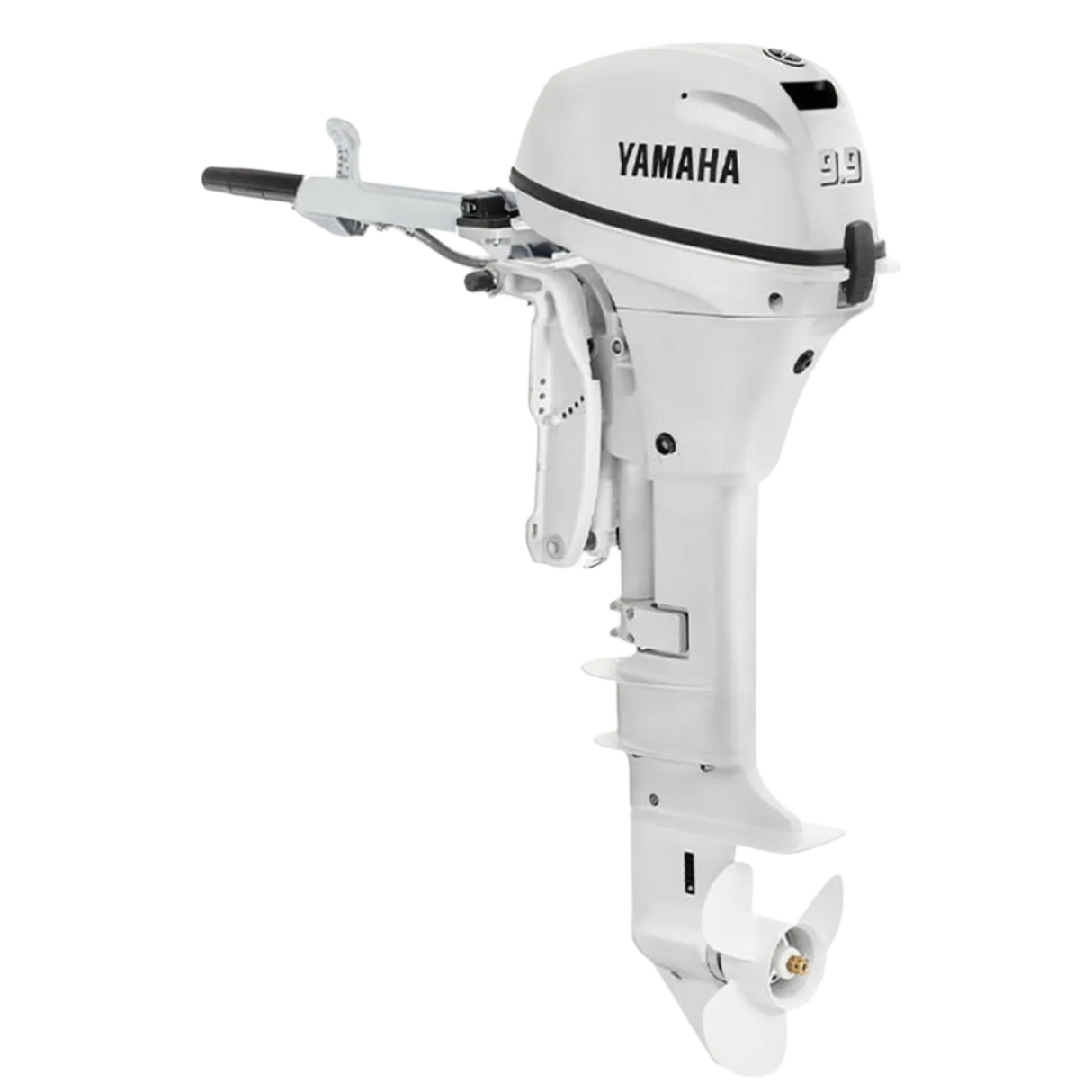

#Year-2021|Model-F9.9smhb|Year-2021
Our 212-cc 9.9-hp portable is an impressive little outboard with a short tiller handle for increased comfort and the option of manual or electric start. The F9.9 platform is so popular, we also offer it with new pearlescent white styling, or in a high-thrust T9.9 format. The high-thrust model offers the option of a 25-inch shaft and a V MAX SHO sport cowling when used as a kicker on a multi-species boat.
Features:
- Color - Gray
- Only 87 pounds
- Shaft Length - 15"
- Manual Start Only
- Solid 6-amp alternator
Optimal Operation
A CDI Microcomputer Ignition monitors throttle position, engine speed and atmospheric conditions in order to precisely adjust ignition timing under all conditions for optimum ignition performance, ensuring smooth and reliable operation.
Solid and Dependable
Incoming air is routed through the Air Intake Labyrinth System that traps and drains water before it enters the engine's intake for maximum reliability.
Engine Warning System
Protects the outboard with a range of functions including: overheat protection and low-oil-pressure warning (automatically reducing maximum RPM to 2000), over-rev protection, start-in-gear protection and shift-in prevention at open throttle.
Corrosion Protection
Combined with our proprietary alloy (YDC-30), our exclusive Phaze Five anti-corrosive paint system provides a tough, five-layer barrier against corrosion. This protection is standard on all Yamaha outboards.
Compact, Lightweight Design
A two-cylinder, single-overhead-camshaft platform and streamlined intake manifold provides an efficient, light design.
Responsive Acceleration
An acceleration pump on the F9.9 and F8 gives these engines the fuel they need--when they need it--like during rapid throttle advance. This ensures responsive acceleration.
Streamlined Intake
An intake silencer and manifold on the F9.9 and F8 result in more direct airflow, for minimum noise and maximum power.
Smart Evolution
The F9.9 and F8 feature a new shorter handle for more comfortable operation. This also ensures that when the handle in hinged back, it tucks in tighter to the cowl for more stable, flexible storage.
Portability and Storage
Built-in front and rear handles make these lightweights easy to carry. Resting pads and an easy oil retention system allow for convenient on-side storage without cowling scuffs or oil leakage.
Propeller Protection
Yamaha's Shallow Water Drive, standard on all 9.9- and 8-hp tiller handle models, helps keep the propeller and lower unit out of harm's way in shallow water.
| Weight † |
39 kg (87 lbs) - 42 kg (93 lbs) |
| Full Throttle RPM Range |
5000 ~ 6000 |
| Fuel Induction System |
Carb |
| Recommended Engine Oil |
Yamalube® 4M (See owner's manual) |
| Engine Type |
2 cyl |
| Displacement |
212cc |
| Bore x Stroke |
56 x 43mm (2.20 x 1.70 in.) |
| Prop Shaft Horsepower |
9.9hp @ 5500rpm |
| Alternator Output at W.O.T. |
6 |
| Compression Ratio |
9.4:1 |
| Recommended Fuel |
Octane 87 |
| Recommended Fuel Filtration |
Yamaha 10-Micron Fuel/Water Separating Filter (external) |
| C.A.R.B. Rating |
3-Star |
| Exhaust |
Through Propeller |
| Intake |
4 |
| Ignition |
CDI Microcomputer |
| Spark Plug |
BR6HS-10 |
| Starting System |
Manual |
| Lubrication |
Wet Sump |
| Engine Oil Capacity |
0.8L |
| Recommended Cooling |
Thermostatic Control |
| Ethanol Blend Limit |
10% Maximum |
| Gear Ratio |
2.08:1 |
| Gear Shift |
Forward, Neutral, Reverse |
| Shaft Length |
15" |
| Degree of Tilt |
71° |
| Degree of Trim |
-4° through +16° |
| Mounting Centers |
N/A |
| Steering |
Tiller |
| Steering Angle (maximum) |
43° from center, either direction |
| Warranty |
Limited 3-Year Pleasure, 3-Year Government, 1-Year Commercial |
#Year-2022|Model-F9.9smhb
Our 212-cc 9.9-hp portable is an impressive little outboard with a short tiller handle for increased comfort and the option of manual or electric start. The F9.9 platform is so popular, we also offer it with new pearlescent white styling, or in a high-thrust T9.9 format. The high-thrust model offers the option of a 25-inch shaft and a V MAX SHO sport cowling when used as a kicker on a multi-species boat.
Features:
- Color - Gray
- Only 87 pounds
- Shaft Length - 15"
- Manual Start Only
- Solid 6-amp alternator
Optimal Operation
A CDI Microcomputer Ignition monitors throttle position, engine speed and atmospheric conditions in order to precisely adjust ignition timing under all conditions for optimum ignition performance, ensuring smooth and reliable operation.
Solid and Dependable
Incoming air is routed through the Air Intake Labyrinth System that traps and drains water before it enters the engine's intake for maximum reliability.
Engine Warning System
Protects the outboard with a range of functions including: overheat protection and low-oil-pressure warning (automatically reducing maximum RPM to 2000), over-rev protection, start-in-gear protection and shift-in prevention at open throttle.
Corrosion Protection
Combined with our proprietary alloy (YDC-30), our exclusive Phaze Five anti-corrosive paint system provides a tough, five-layer barrier against corrosion. This protection is standard on all Yamaha outboards.
Compact, Lightweight Design
A two-cylinder, single-overhead-camshaft platform and streamlined intake manifold provides an efficient, light design.
Responsive Acceleration
An acceleration pump on the F9.9 and F8 gives these engines the fuel they need--when they need it--like during rapid throttle advance. This ensures responsive acceleration.
Streamlined Intake
An intake silencer and manifold on the F9.9 and F8 result in more direct airflow, for minimum noise and maximum power.
Smart Evolution
The F9.9 and F8 feature a new shorter handle for more comfortable operation. This also ensures that when the handle in hinged back, it tucks in tighter to the cowl for more stable, flexible storage.
Portability and Storage
Built-in front and rear handles make these lightweights easy to carry. Resting pads and an easy oil retention system allow for convenient on-side storage without cowling scuffs or oil leakage.
Propeller Protection
Yamaha's Shallow Water Drive, standard on all 9.9- and 8-hp tiller handle models, helps keep the propeller and lower unit out of harm's way in shallow water.
| Weight † |
39 kg (87 lbs) - 42 kg (93 lbs) |
| Full Throttle RPM Range |
5000 ~ 6000 |
| Fuel Induction System |
Carb |
| Recommended Engine Oil |
Yamalube® 4M (See owner's manual) |
| Engine Type |
2 cyl |
| Displacement |
212cc |
| Bore x Stroke |
56 x 43mm (2.20 x 1.70 in.) |
| Prop Shaft Horsepower |
9.9hp @ 5500rpm |
| Alternator Output at W.O.T. |
6 |
| Compression Ratio |
9.4:1 |
| Recommended Fuel |
Octane 87 |
| Recommended Fuel Filtration |
Yamaha 10-Micron Fuel/Water Separating Filter (external) |
| C.A.R.B. Rating |
3-Star |
| Exhaust |
Through Propeller |
| Intake |
4 |
| Ignition |
CDI Microcomputer |
| Spark Plug |
BR6HS-10 |
| Starting System |
Manual |
| Lubrication |
Wet Sump |
| Engine Oil Capacity |
0.8L |
| Recommended Cooling |
Thermostatic Control |
| Ethanol Blend Limit |
10% Maximum |
| Gear Ratio |
2.08:1 |
| Gear Shift |
Forward, Neutral, Reverse |
| Shaft Length |
15" |
| Degree of Tilt |
71° |
| Degree of Trim |
-4° through +16° |
| Mounting Centers |
N/A |
| Steering |
Tiller |
| Steering Angle (maximum) |
43° from center, either direction |
| Warranty |
Limited 3-Year Pleasure, 3-Year Government, 1-Year Commercial |
#Year-2023|Model-F9.9smhb
Our 212-cc 9.9-hp portable is an impressive little outboard with a short tiller handle for increased comfort and the option of manual or electric start. The F9.9 platform is so popular, we also offer it with new pearlescent white styling, or in a high-thrust T9.9 format. The high-thrust model offers the option of a 25-inch shaft and a V MAX SHO sport cowling when used as a kicker on a multi-species boat.
Features:
- Color - Gray
- Only 87 pounds
- Shaft Length - 15"
- Manual Start Only
- Solid 6-amp alternator
Optimal Operation
A CDI Microcomputer Ignition monitors throttle position, engine speed and atmospheric conditions in order to precisely adjust ignition timing under all conditions for optimum ignition performance, ensuring smooth and reliable operation.
Solid and Dependable
Incoming air is routed through the Air Intake Labyrinth System that traps and drains water before it enters the engine's intake for maximum reliability.
Engine Warning System
Protects the outboard with a range of functions including: overheat protection and low-oil-pressure warning (automatically reducing maximum RPM to 2000), over-rev protection, start-in-gear protection and shift-in prevention at open throttle.
Corrosion Protection
Combined with our proprietary alloy (YDC-30), our exclusive Phaze Five anti-corrosive paint system provides a tough, five-layer barrier against corrosion. This protection is standard on all Yamaha outboards.
Compact, Lightweight Design
A two-cylinder, single-overhead-camshaft platform and streamlined intake manifold provides an efficient, light design.
Responsive Acceleration
An acceleration pump on the F9.9 and F8 gives these engines the fuel they need--when they need it--like during rapid throttle advance. This ensures responsive acceleration.
Streamlined Intake
An intake silencer and manifold on the F9.9 and F8 result in more direct airflow, for minimum noise and maximum power.
Smart Evolution
The F9.9 and F8 feature a new shorter handle for more comfortable operation. This also ensures that when the handle in hinged back, it tucks in tighter to the cowl for more stable, flexible storage.
Portability and Storage
Built-in front and rear handles make these lightweights easy to carry. Resting pads and an easy oil retention system allow for convenient on-side storage without cowling scuffs or oil leakage.
Propeller Protection
Yamaha's Shallow Water Drive, standard on all 9.9- and 8-hp tiller handle models, helps keep the propeller and lower unit out of harm's way in shallow water.
| Weight † |
39 kg (87 lbs) - 42 kg (93 lbs) |
| Full Throttle RPM Range |
5000 ~ 6000 |
| Fuel Induction System |
Carb |
| Recommended Engine Oil |
Yamalube® 4M (See owner's manual) |
| Engine Type |
2 cyl |
| Displacement |
212cc |
| Bore x Stroke |
56 x 43mm (2.20 x 1.70 in.) |
| Prop Shaft Horsepower |
9.9hp @ 5500rpm |
| Alternator Output at W.O.T. |
6 |
| Compression Ratio |
9.4:1 |
| Recommended Fuel |
Octane 87 |
| Recommended Fuel Filtration |
Yamaha 10-Micron Fuel/Water Separating Filter (external) |
| C.A.R.B. Rating |
3-Star |
| Exhaust |
Through Propeller |
| Intake |
4 |
| Ignition |
CDI Microcomputer |
| Spark Plug |
BR6HS-10 |
| Starting System |
Manual |
| Lubrication |
Wet Sump |
| Engine Oil Capacity |
0.8L |
| Recommended Cooling |
Thermostatic Control |
| Ethanol Blend Limit |
10% Maximum |
| Gear Ratio |
2.08:1 |
| Gear Shift |
Forward, Neutral, Reverse |
| Shaft Length |
15" |
| Degree of Tilt |
71° |
| Degree of Trim |
-4° through +16° |
| Mounting Centers |
N/A |
| Steering |
Tiller |
| Steering Angle (maximum) |
43° from center, either direction |
| Warranty |
Limited 3-Year Pleasure, 3-Year Government, 1-Year Commercial |
