Cole Hersee Continuous Duty Solenoid - 12V - 24059-BP
Description
Description

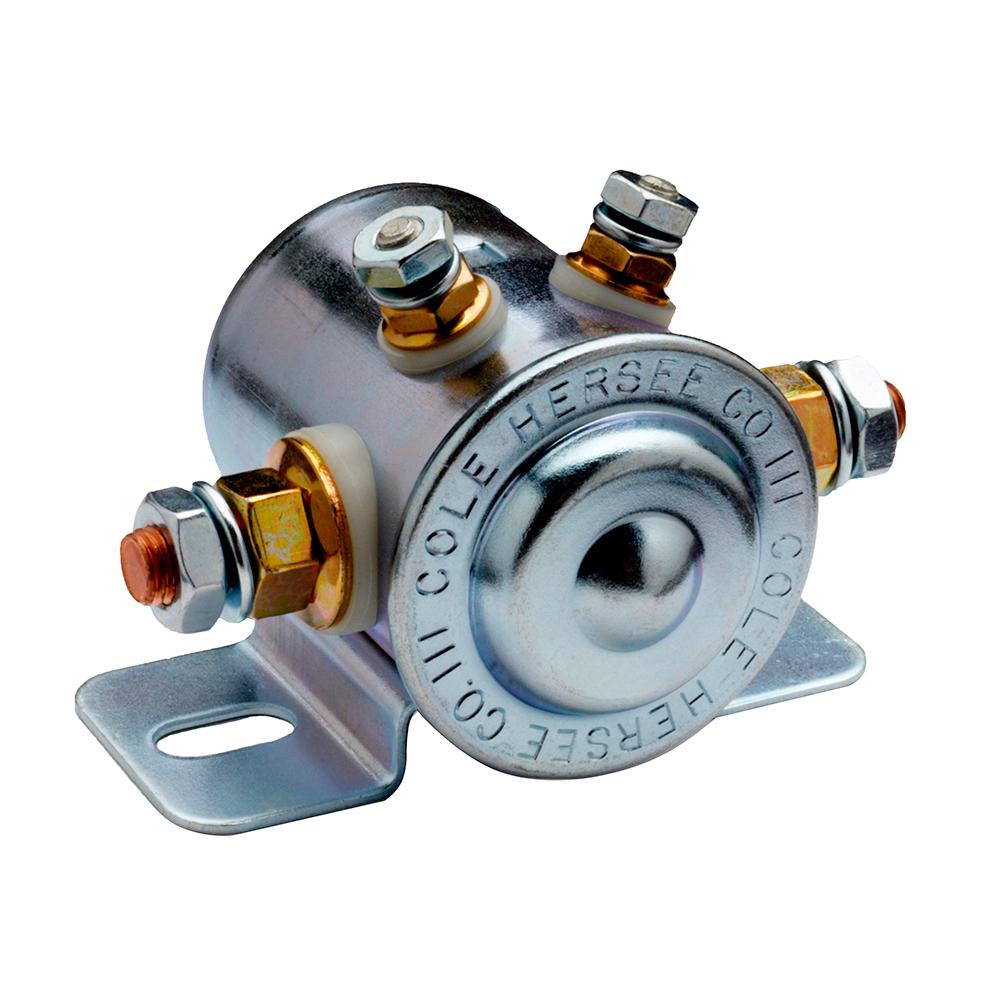

Continuous Duty Solenoid - 12V
Minimizes arcing and contact oxidation, maintains highp erformance. Universal use with part numbers available to handle loads up to 200A.
PVC Coated option available for a more environmentally sealed product. Coated solenoids withstand moisture and dust to IP66.
Mechanical Specifications:
- SPST Normally open contacts
- Plated steel housing. Hexnuts and washers included
- Large (power circuit) battery studs; copper
- 5/16” -24 thread
- Small (control circuit) coil studs; steel 10-32 thread
- Bracket mounting holes 5/16 X 19/32” (7.9 X 15.1mm) on
- 2 13/64” centers (56.0mm)
- Available with PVC coated exterior or Potted Coil interiors
- for harsh environments or vibration resistance
- Caution: Never unscrew the inner hexnuts on the studs
- These keep the stud and inner wiring in place
Quick Guide (pdf)
