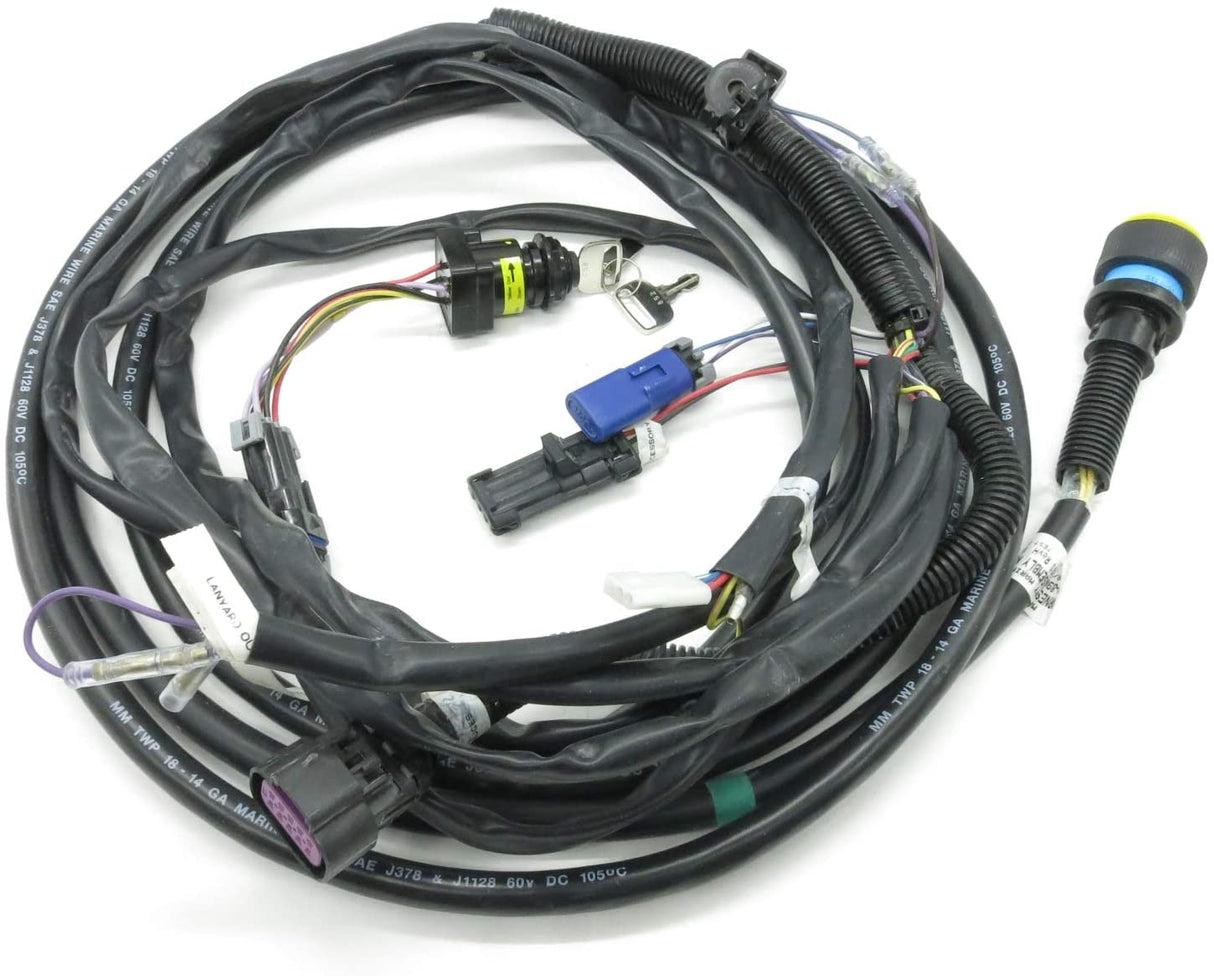

Mercury – Key Switch with Harness Non-DTS 14-Pin | Ignition Wiring Assembly | 896537K02

The Mercury Key Switch with Harness (Non-DTS 14-Pin) is designed for mechanical outboard applications that use a non-DTS fourteen-pin ignition connection. It is commonly selected during repowers or rewiring projects where a clean, updated ignition layout is desired. The integrated key switch and extended harness help keep wiring organized at the helm without forcing tight bends or rerouting existing connections.

Maintaining a properly configured ignition wiring system supports consistent engine starting and helps reduce electrical issues caused by strained, loose, or aging connections. Secure routing, correct mounting, and routine inspection help preserve signal stability and support dependable operation over time in typical marine conditions.

Key Features

• Integrated Ignition Key Switch Assembly – Provides reliable engine start and stop control
• Non-DTS 14-Pin Harness – Designed for mechanical ignition systems using fourteen-pin connectors
• Extended Harness Length – Supports cleaner routing and easier dash installation
• OEM-Style Mercury Connectors – Maintains proper pin alignment and secure electrical contact



Engine & System Compatibility

• Mercury outboards
• Mechanical control systems
• Non-DTS ignition systems
• Fourteen-pin connector engine applications



Important Notes

• Confirm engine ignition type and non-DTS fourteen-pin connector compatibility before ordering
• Ensure all wiring is securely routed and connections are fully seated during installation
• Verify proper engine starting and shutdown operation after installation



FAQs

1) What is this key switch assembly used for?
It provides ignition start and stop control for Mercury outboards using non-DTS fourteen-pin ignition systems.

2) Does this assembly include the wiring harness?
Yes. The ignition key switch includes an attached fourteen-pin harness.

3) Is this compatible with DTS or SmartCraft systems?
No. This assembly is intended for non-DTS mechanical ignition systems only.

4) When is this switch commonly replaced?
It is often replaced during repowers, rewiring projects, or when an existing ignition switch becomes worn or unreliable.

5) Why choose an OEM Mercury ignition switch and harness?
OEM components are built to Mercury electrical specifications, helping ensure proper signal timing, reliable starting, and long-term durability.
