Your boat’s electrical system depends on one simple principle: protect the wiring before it fails. That’s exactly what fuses and breakers are designed to do. These small components act as safeguards, disconnecting power the instant something draws more current than the system can safely handle.
Choosing the wrong size can cause serious problems. If a fuse or breaker is rated too high, a short circuit could overheat the wiring before it ever trips. If it’s too low, you’ll deal with constant nuisance trips that shut things off even when everything is working fine.
Learning how to size them correctly keeps your power system safe, efficient, and reliable every time you head out on the water.
Why Fuse and Breaker Sizing Matters
Marine electrical systems operate in harsh conditions — vibration, heat, and saltwater all add stress. Proper sizing ensures that if something goes wrong, the protective device opens the circuit before the wiring overheats or the insulation burns. These components aren’t there to protect your lights, pumps, or electronics. Their main job is to protect the wires that feed them.
How Fuses and Breakers Work
Both fuses and breakers perform the same basic task. Their job is to stop the flow of electricity when a circuit draws more current than it should. A fuse contains a thin metal strip that melts under excessive current, cutting off the power instantly. A breaker uses an internal mechanism that “trips” when overloaded and can be reset once the fault is fixed.
While a fuse sacrifices itself to stop the current, a breaker is reusable. Both are equally effective when properly rated for the circuit, but fuses are often preferred for simplicity and cost, while breakers are ideal where easy resets are important.
Step 1: Identify the Circuit Load
Start by identifying what the circuit powers and how much current it draws under normal use. You can usually find this information on the device label or in the manufacturer’s documentation. If multiple devices share a single circuit, add up their total current draw to find the combined load.
Step 2: Check the Wire Gauge
Each wire size can safely carry only a certain amount of current. Thicker wires handle more amperage; thinner wires handle less. Always size your fuse or breaker to the smallest wire in that circuit. Choosing a protective device rated higher than the wire can handle defeats the purpose and risks overheating or fire.
Step 3: Account for Distance and Voltage Drop
Longer wire runs increase resistance, which can cause voltage loss. If your circuit runs the full length of the boat, use a heavier wire to keep voltage loss minimal. When you use a thicker wire, you can safely use a slightly higher fuse or breaker rating — but always stay within the limits of the wiring and components.
Step 4: Choose the Right Fuse or Breaker Type
Different circuits require different protection styles:

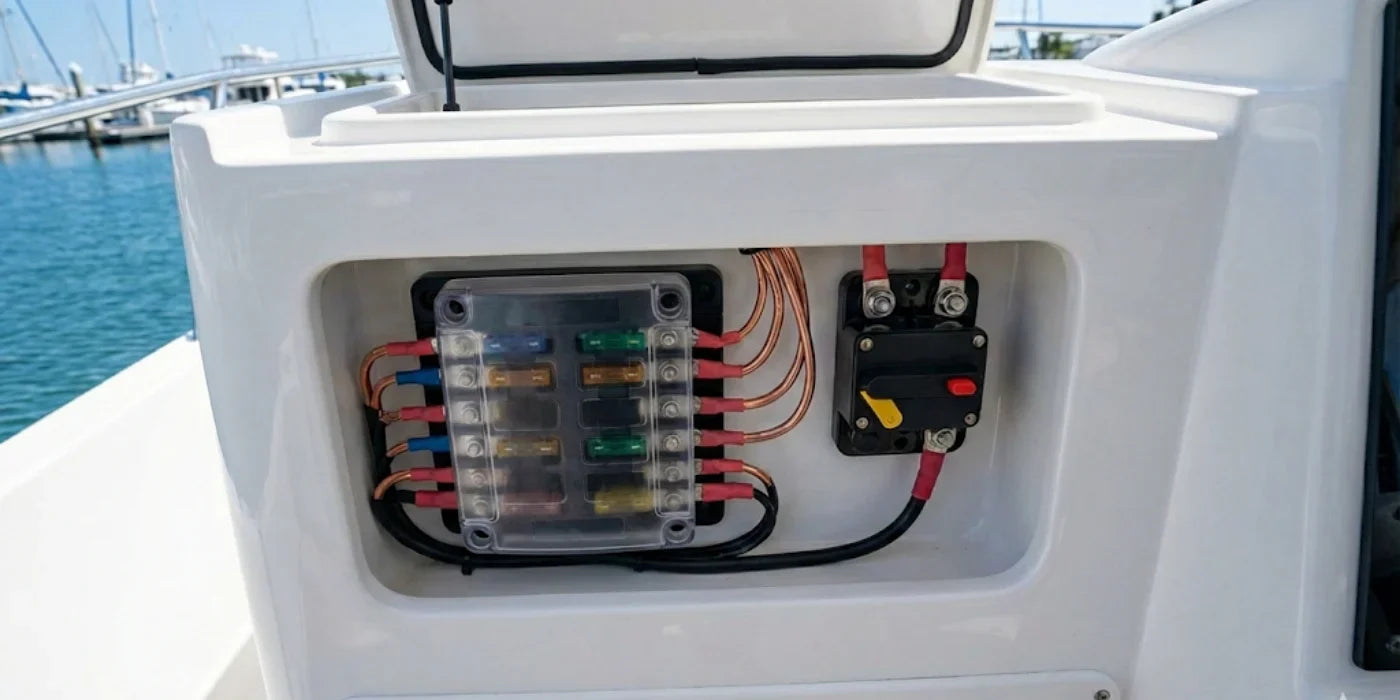

There are several styles of circuit protection used on boats, each suited to a different setup. Small boats often use simple blade-style fuses that snap easily into a panel, while inline fuse holders work well for protecting single accessories mounted close to the power source.
For circuits that are switched on and off frequently, resettable breakers offer convenience and reduce the need to replace fuses. Larger boats or systems that draw more power typically use heavy-duty breaker panels designed to handle higher electrical loads safely.
Whatever style you choose, make sure it’s marine-rated and built to handle moisture, vibration, and heat so your system stays reliable in rough conditions.
Step 5: Install Close to the Power Source
Your main fuse or breaker should be installed as close to the battery as possible. This protects the primary feed wire in case a short occurs anywhere downstream. Additional fuses or breakers can then protect smaller branch circuits throughout the boat.
Step 6: Test and Inspect Regularly
Once everything is installed, run the system under normal load and check for any signs of heat, discoloration, or flickering. Recheck terminals and wire ends for corrosion or looseness. A fuse that blows repeatedly indicates a wiring issue or a device drawing more power than intended.
Marine vs. Automotive Components
Marine and automotive components might look similar, but they’re not built for the same environment. Marine-rated fuses and breakers are made with corrosion-resistant materials, sealed housings, and strong terminals designed to handle vibration, moisture, and salt air. Automotive parts often corrode quickly, leading to false trips or total power loss.
If it’s not labeled for marine use, skip it — corrosion can destroy an electrical system faster than most people realize.
Common Mistakes When Sizing Fuses and Breakers
- Installing a fuse or breaker that’s larger than the wire can handle
- Mounting the main fuse too far from the battery
- Using household or automotive fuses in marine applications
- Ignoring heat, discoloration, or melting around terminals
- Replacing a blown fuse without checking for the real problem
Avoiding these simple mistakes is the easiest way to keep your boat safe, efficient, and compliant with electrical standards.
Installation and Maintenance Tips
Use marine-grade connectors and wiring with proper strain relief to keep connections secure. This setup minimizes vibration damage and helps prevent corrosion caused by moisture or salt exposure. Mount fuse blocks and breakers in dry, accessible locations so they can be inspected easily. Label each circuit clearly, and carry a few spare fuses of each size on board.
If you ever replace a fuse, match the original rating exactly and investigate the cause before restoring power. A fuse that blows more than once is a warning sign that something deeper is wrong. Keeping your wiring clean, protected, and organized will save hours of troubleshooting later.
Key Takeaways for Safe Installation
Proper fuse and breaker sizing keeps your system balanced, efficient, and safe. When installed and maintained correctly, these small devices protect every circuit quietly in the background, preventing heat buildup and damage that could lead to bigger electrical problems. They keep your lights bright, your pumps dependable, and your gear running smoothly on every outing.
A well-protected electrical system does more than just prevent breakdowns. It reduces wear on wiring, improves overall performance, and helps your batteries deliver steady, reliable power. Taking the time to size and maintain your protection system properly gives you confidence every time you turn the key and head out on the water.
