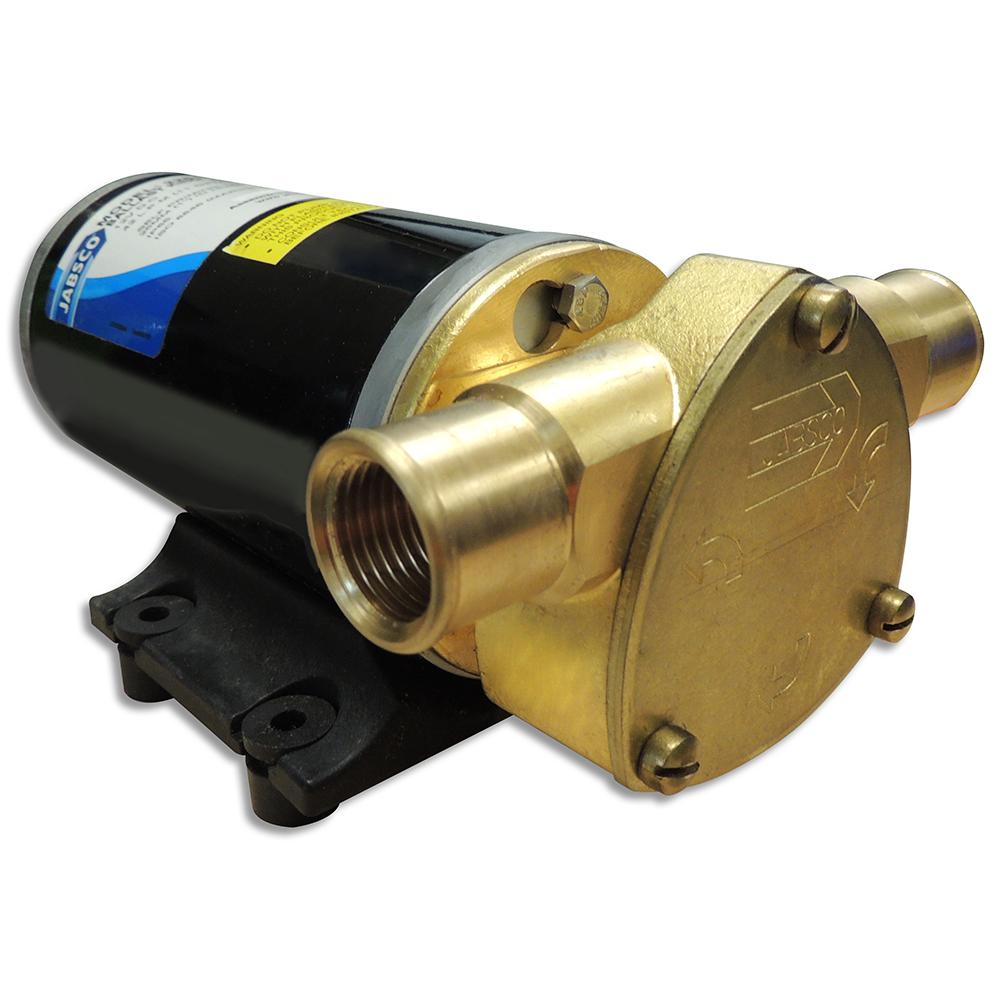

Jabsco - Ballast King Bronze DC Pump with Reversing Switch - 15 GPM - 22610-9507

SKU: PV023787
$524.99
This product could earn you points
Learn more about PartsVu rewards
Free Shipping Over $149.00

Description

Jabsco - Ballast King Bronze DC Pump with Reversing Switch - 15 GPM - 22610-9507

Wakeboard and Ski Boat Ballast Pump

Features:

  • Flow rate: 15 US gallons/min (57 Litres/min)
  • Self-priming from dry up to 1.2m (4ft)
  • Adds approx 125lbs (56kgs) of ballast per minute
  • Reversible to both fill and empty tanks
  • Simple design means fewer wearing parts.
  • ISO 8846 MARINE (Ignition protection).

Applications:

The Ballast King is designed to pump water into Wakeboard Liquid Ballast Tanks and when reversed will also pump water out of them. It has a flow rate of 15 gallons per minute, so it can fill most ballast tanks in about five minutes. It is equipped with a Run-Dry Protection Device (patent pending) to automatically shut-off the pump and protect the impeller from run-dry damage should the pump be mistakenly left on after the Ballast Tank is empty.

 Specifications:

  • Body Materials - Bronze
  • Impeller - Jabsco Neoprene compound
  • Seal - Lip Type
  • Port(s) - 1/2" Internal Pipe Threads 1" External Hose Barb
  • Voltage - 12 (Vdc)
  • Amp Draw - 19 (amp)
  • Fuse Size - 25 (amp)
  • Motor Type - Equipped with Run-Dry Protection Device (Patent Pending) Permanent Magnet Type Fully Enclosed Stainless Steel Shaft Ball Type Shaft Bearing Reversible
  • Duty Cycle - 30 Minutes Max
  • Dimensions - 3 5/8 x 8 x 4 3/4 (inches)

Specifications:

  • Gallons Per Minute - 15 GPM
  • Volts - 12V

Brochure (pdf)
