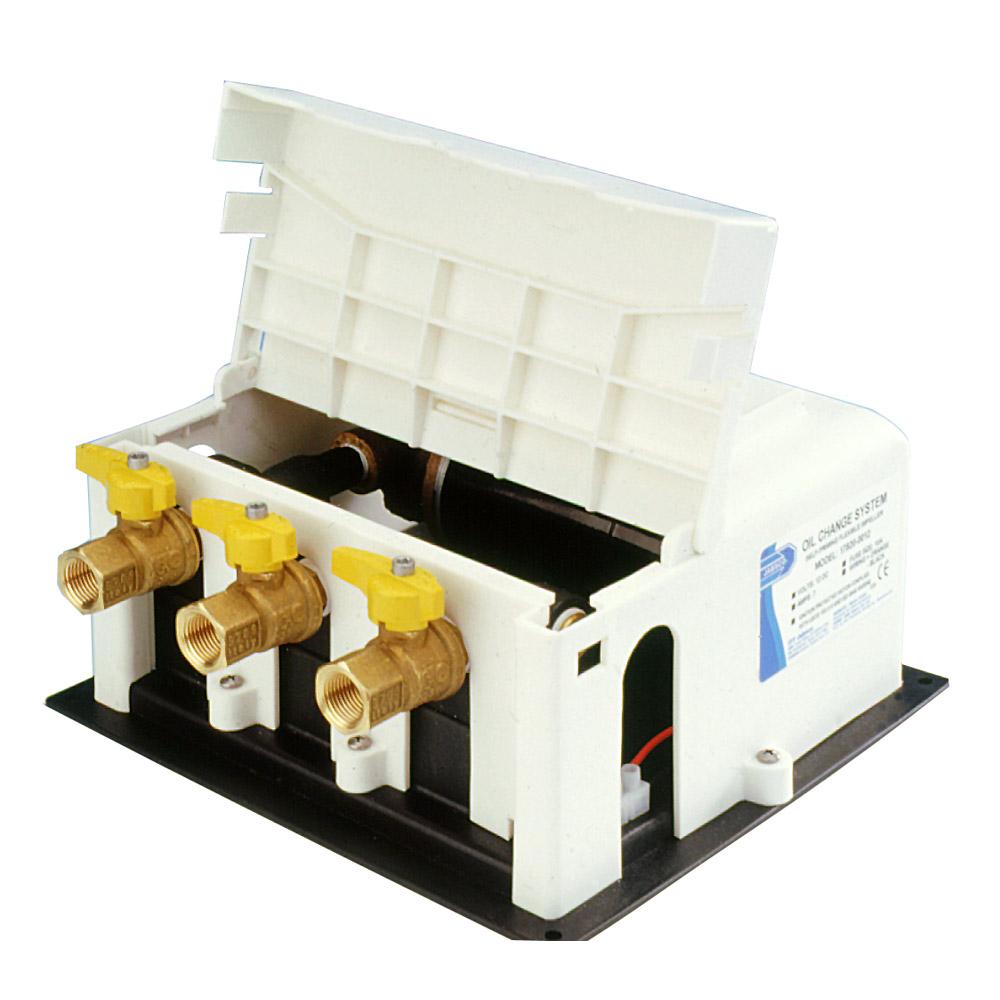

Jabsco - Oil Changer System - 12V - 17820-0012

The Jabsco Oil Change System is designed to be installed in a vessel's engine room with its manifold and valves permanently plumbed to the vessel's engines' oil pans or transmissions' oil sumps. The manifold is factory fitted with three ball valves to serve three different oil reservoirs and may be fitted with two additional ball valves to drain up to five oil reservoirs.

The system can be used to remove old oil from an engine or transmission then reversed, with the integral reversing switch, to pump a measured amount of new oil back into the engine or transmission. Each connection to an engine is controlled by a dedicated full flow ball valve. The system's cover provides an attractive appearance, fully shrouding the entire pump and manifold system. It also provides added protection against accidental draining of an engine's oil supply because the valve cover protects the factory supplied valves from being accidentally bumped open. Additionally, at the end of an oil change, the cover will not close unless the factory supplied valves are in the fully closed position.

Features:

• Connections - 1/2" internal threaded
• Dimensions - 280mm long, 260mm wide, 250mm high (with cover open)
• Fuse Size - 15(amp)
• Output - up to 3 litres/minute
• Reversible pump with valved manifold, for permanent connection to oil sumps and pans.
• Removes old oil, then reverses to pump in new oil.
• Tough plastic cover protects pump and valves.
• Built-in reversing switch
• Packaged Dimensions: L:30.00 x H:20.00 x W:30.00cm
• Actual Weight: 4.88 Kg  (Approx. 5.38 Kg packed)
