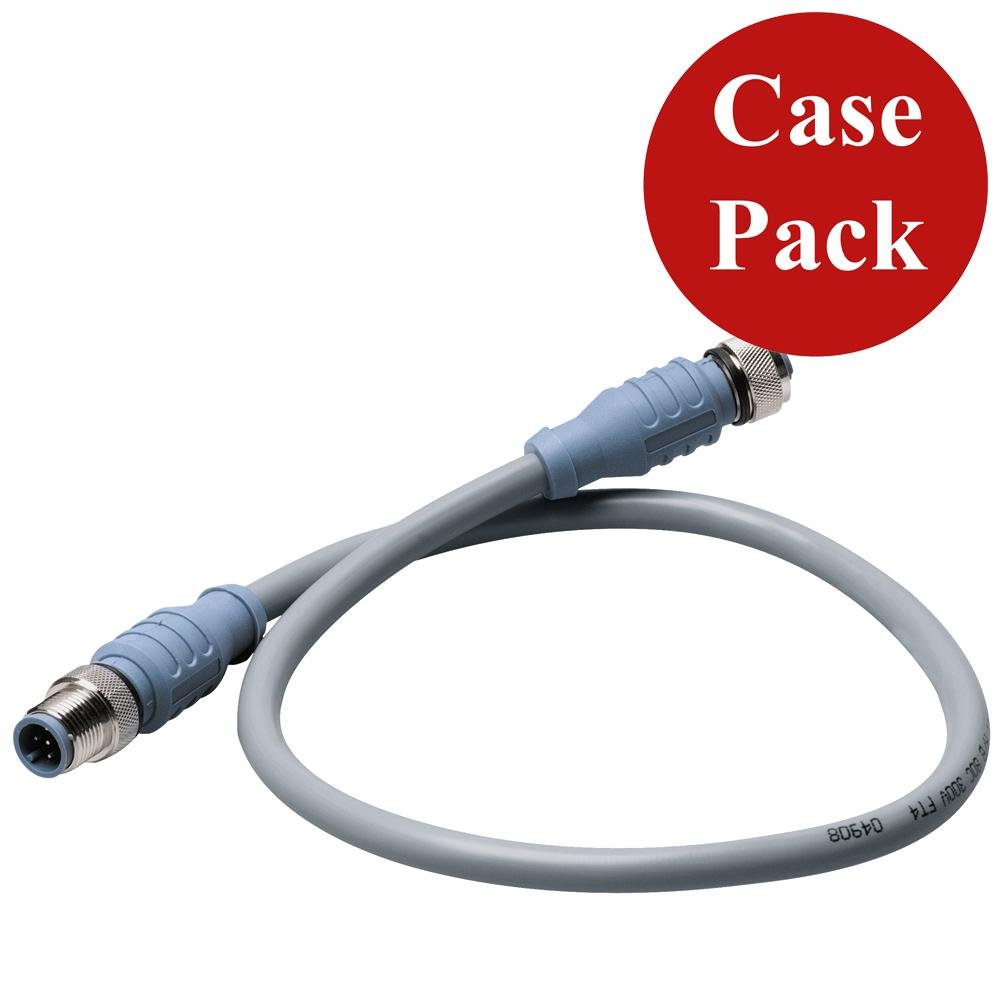

MaretronMicro Double-Ended Cordset - 0.5M - *Case of 6* - CM-CG1-CF-00.5CASE
Loading...
MaretronMicro Double-Ended Cordset - 0.5M - *Case of 6* - CM-CG1-CF-00.5CASE
SKU:
PV018648
$150.00
Unit price /
Unavailable
MaretronMicro Double-Ended Cordset - 0.5M - *Case of 6* - CM-CG1-CF-00.5CASE is backordered and will ship as soon as it is back in stock.
This product could earn you
points
Learn more about PartsVu rewards
Learn more about PartsVu rewards
Free Shipping Over $99
Orders $99 or more ship free within the contiguous U.S. May not apply to engines or oversized orders.
Learn MoreQuick & Easy Returns
We accept returns on most items for 45 days— with no restocking fees.
Learn MoreReady to Serve
Our top priority is your ultimate satisfaction, and to get you back to boating as soon as possible.
Contact a Parts Pro
Size chart content page
MaretronMicro Double-Ended Cordset - 0.5M - *Case of 6* - CM-CG1-CF...
$150.00
Unit price /
Unavailable
Description
Description
Micro Double-Ended Cordset - 0.5M - *Case of 6*
Mechanical
- Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
- Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
- Contact Mat/Plating: Brass/Gold
- Coupling Nut Mat/Plating: Brass/Nickel
- Connector Outside Diameter: 0.59" Electrical
- Current Rating: 4.0 Amps
- Voltage Rating: 250 V Cable
- Outer Jacket Mat/Color: PVC/Gray
- Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
- Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
- Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)
Environmental
- Protection Class: IEC IP68, NEMA 1,3,4,6P
- Temperature Rating: -40 C to 80 C to (-40 F to 176 F)Approvals
- (Cable) UL: PLTC 75 C Sunlight Resistant E90625, AWM 80 C 300V
- (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 C, AWM I/II A/B 80C 300V FT4
- NMEA: NMEA 2000 Approved
