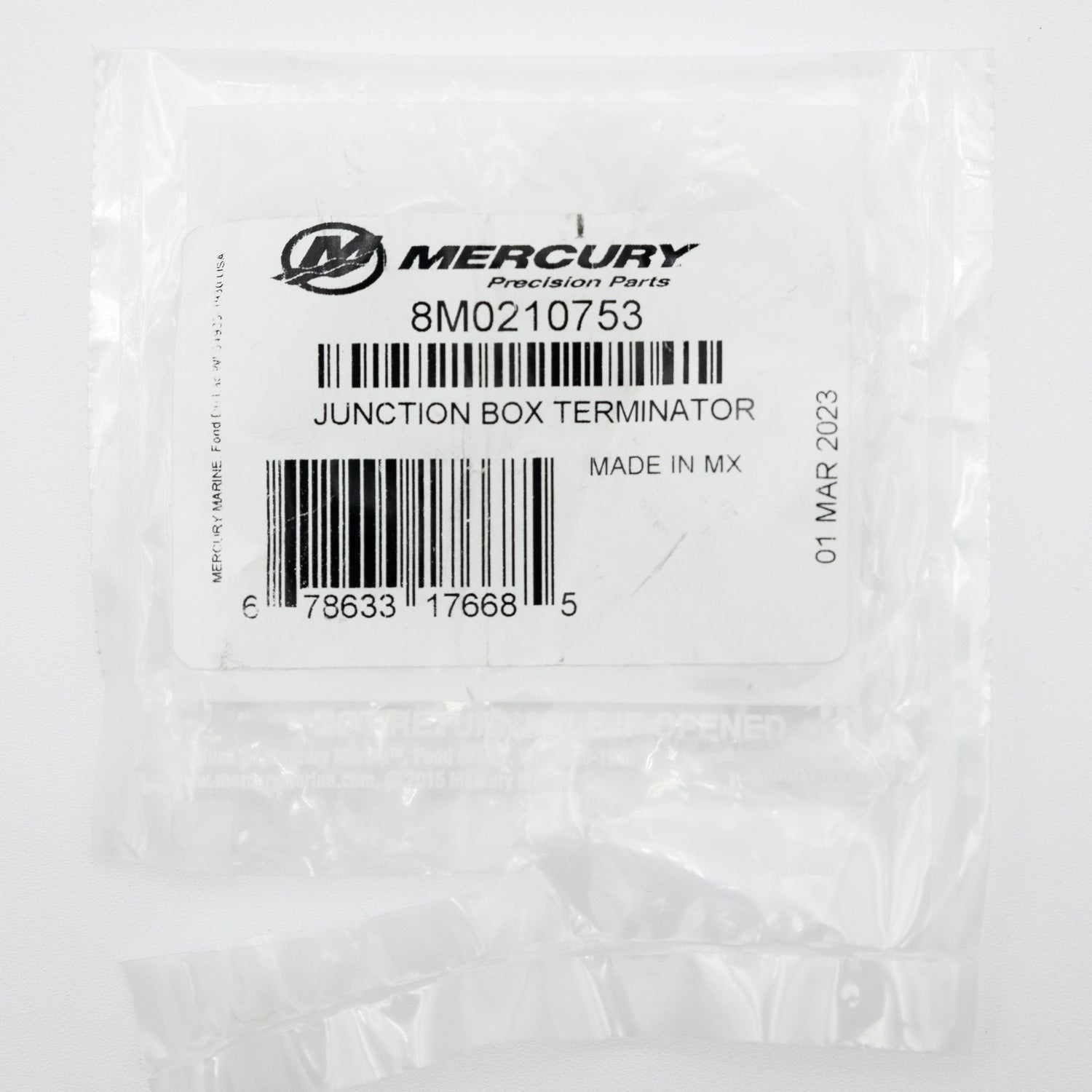

Mercury – SmartCraft J-Box Terminator / Resistor | CAN P Network End Termination | 8M0210753

Overview

A SmartCraft network only works as smoothly as its termination, and missing or worn end resistors can create all kinds of odd faults—dropped data, flickering gauges, or unstable readings. The Mercury 8M0210753 J-Box Terminator/Resistor closes out the CAN P network the way it’s designed to, giving the system the proper electrical load and a clean end point. It’s a simple piece, but it keeps the entire network steady and predictable.

Key Features

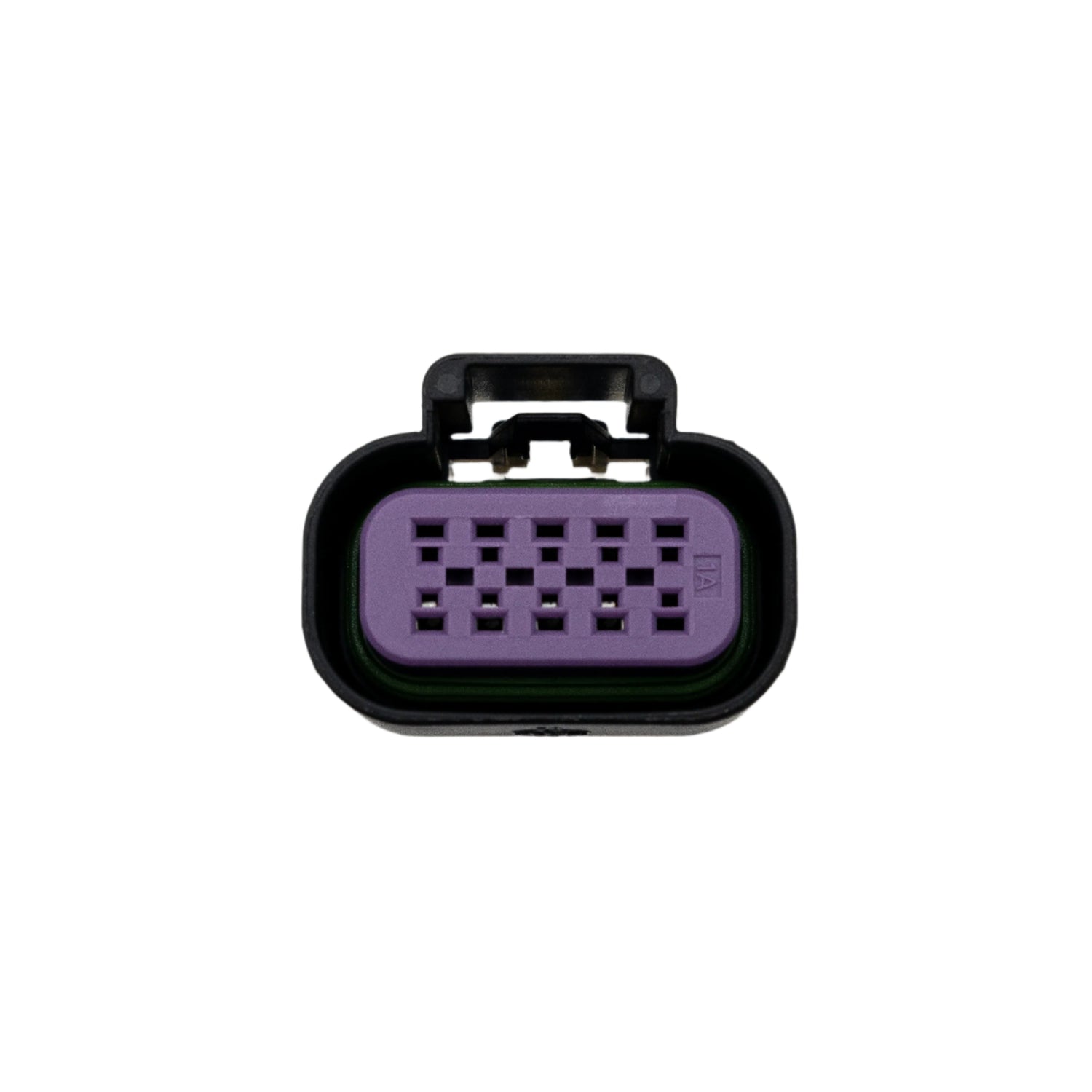

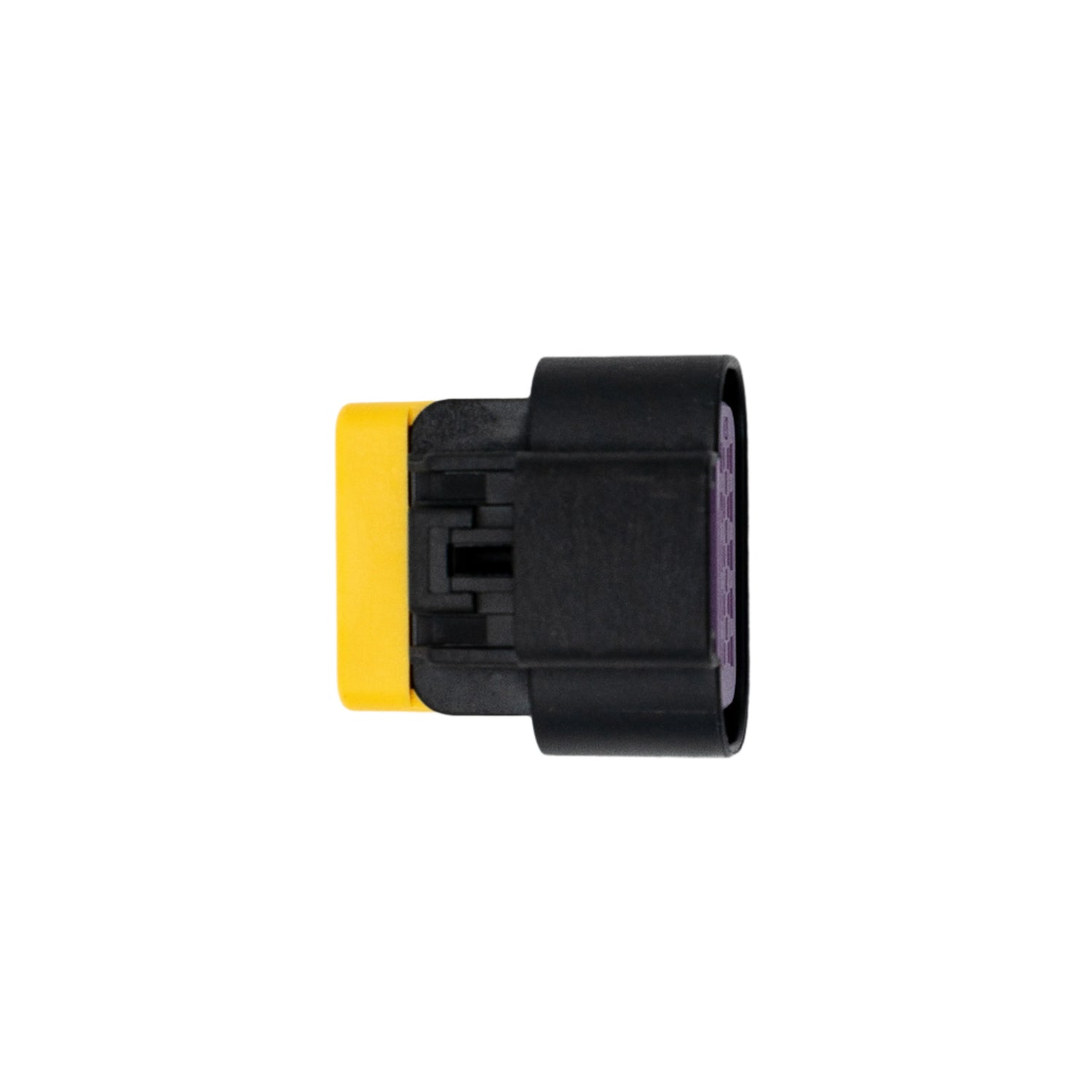

• 10-Pin End Terminator – Caps and terminates the SmartCraft yellow 10-pin connection.
• CAN P Network Resistor – Provides the correct resistance to stabilize SmartCraft communication.
• J-Box Ready – Designed for use at the end of SmartCraft junction box network runs.
• Signal Stability – Helps prevent data dropouts and communication errors.
• OEM Electrical Spec – Matches Mercury’s required CAN P termination values.
• Quick Install – Presses into place for a clean, secure connection.

Compatibility

• SmartCraft CAN P networks
• SmartCraft junction boxes
• 10-pin SmartCraft network termination points

Performance & Practical Benefits

This terminator ensures the CAN P network sees the proper resistance so data can move cleanly from one module to another. When installed correctly, gauges respond more consistently, and the system avoids the kind of intermittent faults that happen when a network is left unterminated. It’s a small component that plays an important part in keeping the SmartCraft backbone calm and predictable.

Why Buy OEM

SmartCraft networks are sensitive to incorrect termination values. Mercury’s OEM resistor has the exact electrical characteristics the system expects, which keeps communication stable. Aftermarket substitutes often fall out of spec, leading to strange behavior that’s difficult to track down. The OEM unit installs cleanly and delivers long-term reliability.

FAQ

Q1: How do I know if my SmartCraft network needs a terminator?
If an end point on the junction box is open or missing its cap, the network usually requires a terminator to restore stability.

Q2: Can a bad terminator cause gauge glitches?
Yes. Incorrect termination can lead to flickering displays, dropped data, or intermittent faults.

Q3: Does installation require tools?
No. It presses directly into the 10-pin port.

Q4: Can this be used anywhere on the network?
It should be used at the end of a SmartCraft CAN P network run, not in the middle.

Q5: Is it suitable for saltwater boats?
Yes. It’s built for long-term marine exposure when installed properly.
