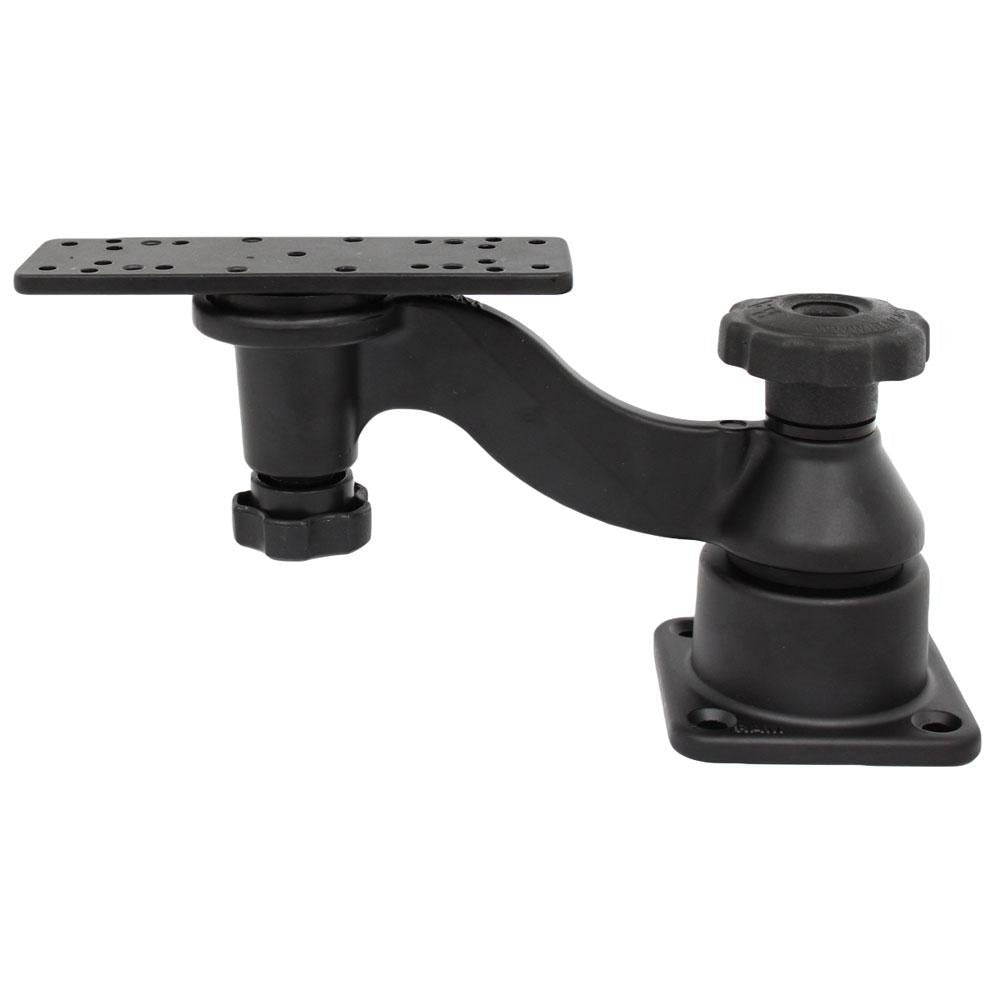

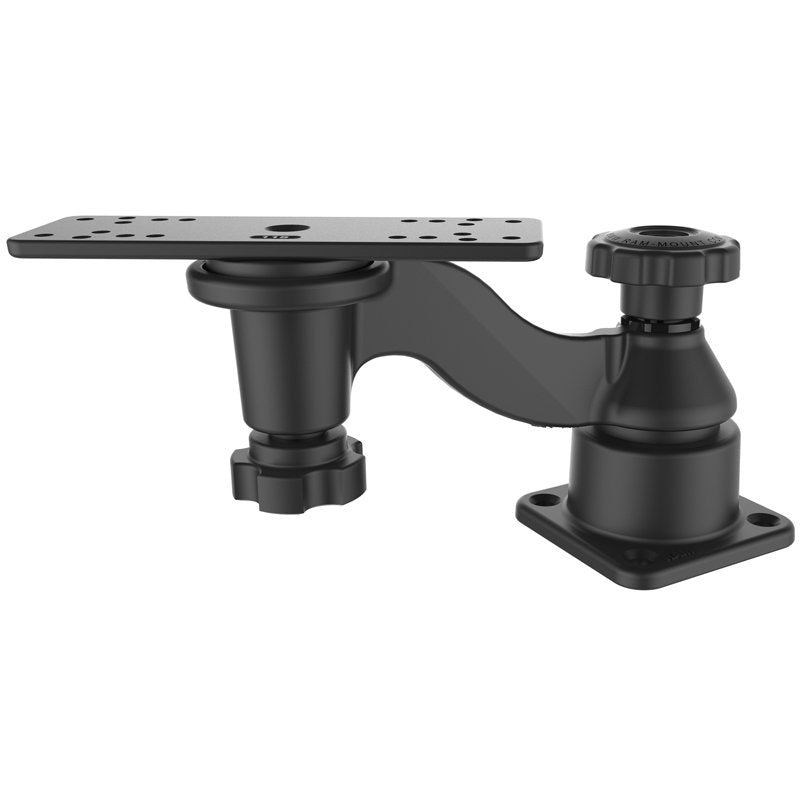

RAM Mount - Flat Surface Horizontal Single Swing Arm Mount - RAM-109HU

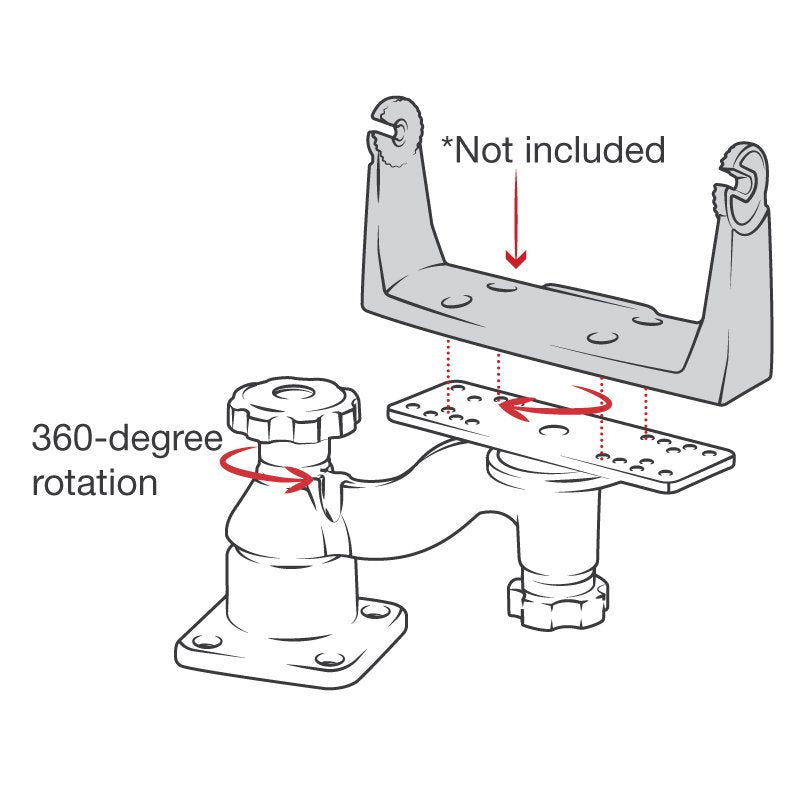

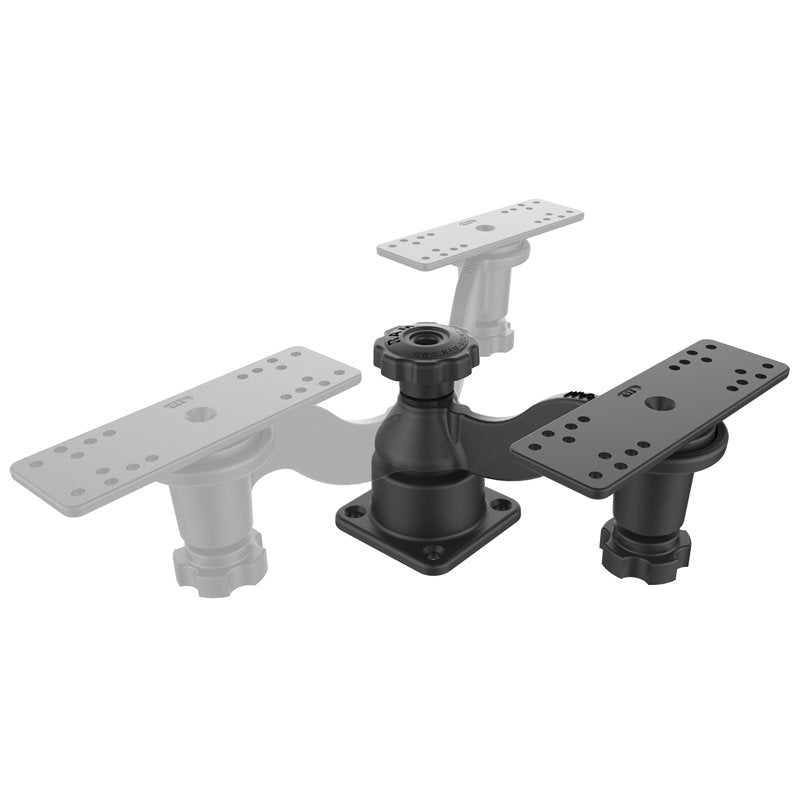

The RAM single swing arm mount consists of a 6" long BENT swing arm mounted on a horizontal surface mounting base. At the device mounting end of the mount is a rectangular 6.25" x 2" plate. There are two (2) pivoting points on the mount. One at the swing arm and base and one at the center of the rectangular plate and the end of the swing arm. Each pivoting point allows a complete 360 degree rotation.

Dimensions:

• Center of knob to center of ball socket: 6"
• Overall length of swing arm assembly: 10.75"
• Overall height: 5.6"
• Height from base to top of knob: 4.91"

Material:

• Powder Coated Marine Grade Aluminum

Note:The "U" in the part number reflects product packaged in poly bag. The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
