RAM Mount - X-Grip Large Phone Mount with Brake/Clutch Reservoir Base - RAM-B-174-UN10

SKU: PV024073
$95.00
This product could earn you points
Learn more about PartsVu rewards
Free Shipping Over $149.00

Description

RAM Mount - X-Grip Large Phone Mount with Brake/Clutch Reservoir Base - RAM-B-174-UN10

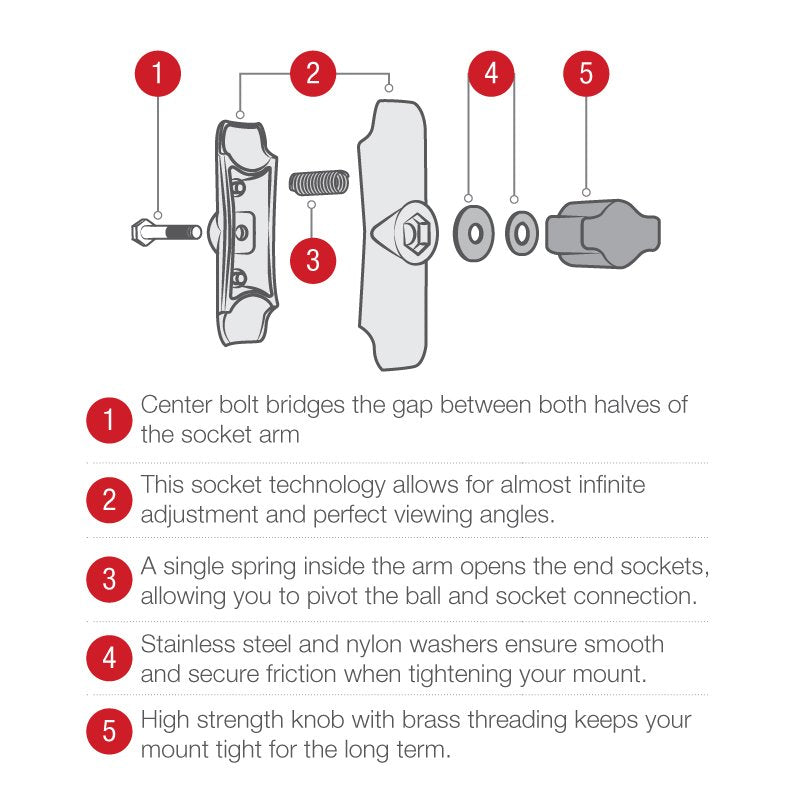

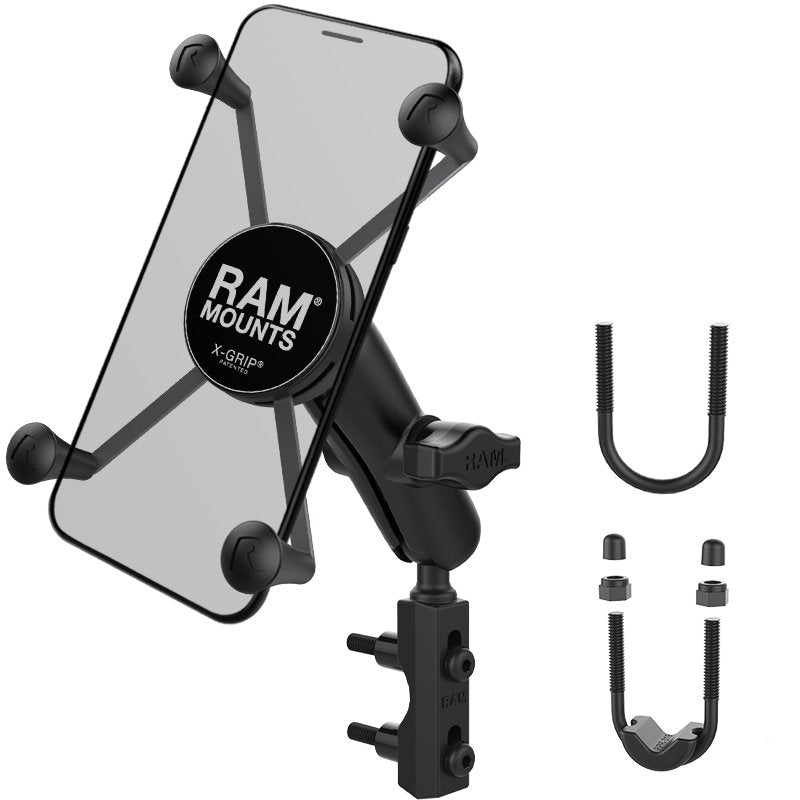

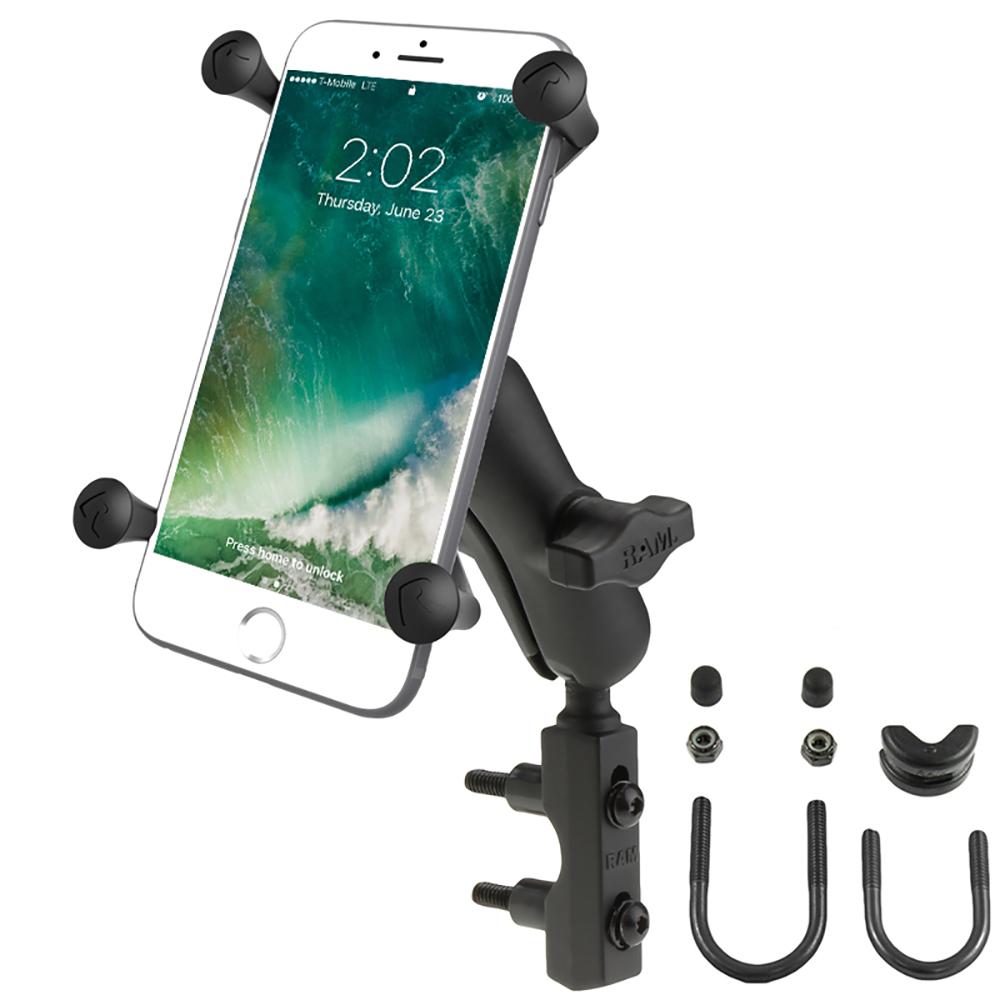

The RAM-B-174-UN10 consists of hardware for mounting to either brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter, double socket arm and universal X-Grip large phone/phablet holder. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob, allows you to move the X-Grip mount to your optimum viewing position.

The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. The included X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of today's vehicles, the RAM X-Grip is the cell phone cradle evolved.

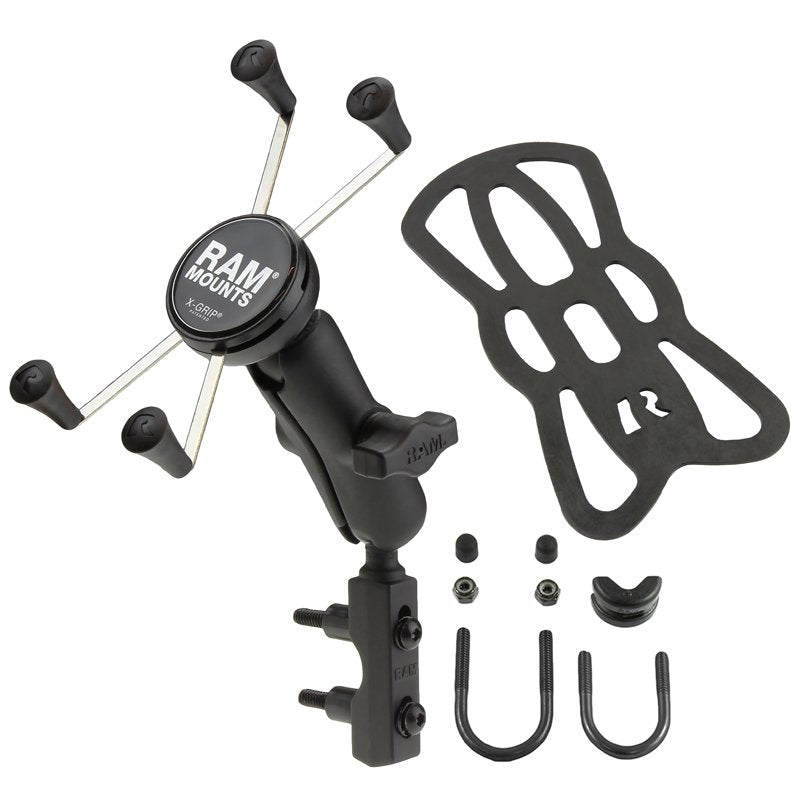

The X-Grip includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

Specifications:

Includes:

  • (QTY. 1), Optional Tether Included

Cradle Dimensions:

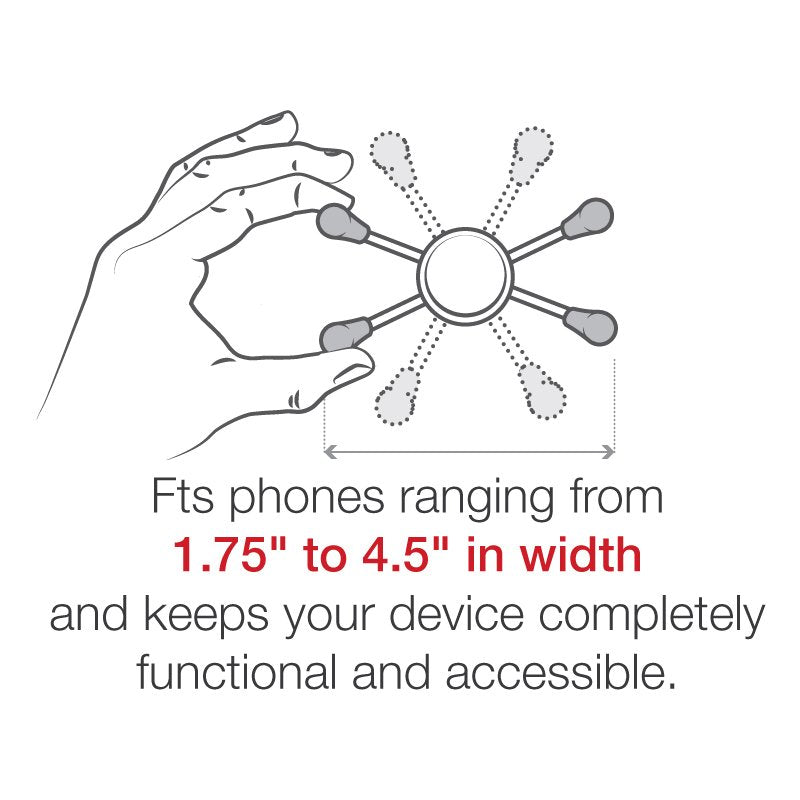

  • Minimum Width - 1.75" (Minimum Height = 5.5")
  • Maximum Width - 4.5" (Minimum Height = 3.25")
  • Depth - 0.875"
  • Material - Powder Coated Marine Grade Aluminum, Marine Grade Stainless Steel Components & High Strength Composite
  • Ball Size - B Size 1" Rubber Ball

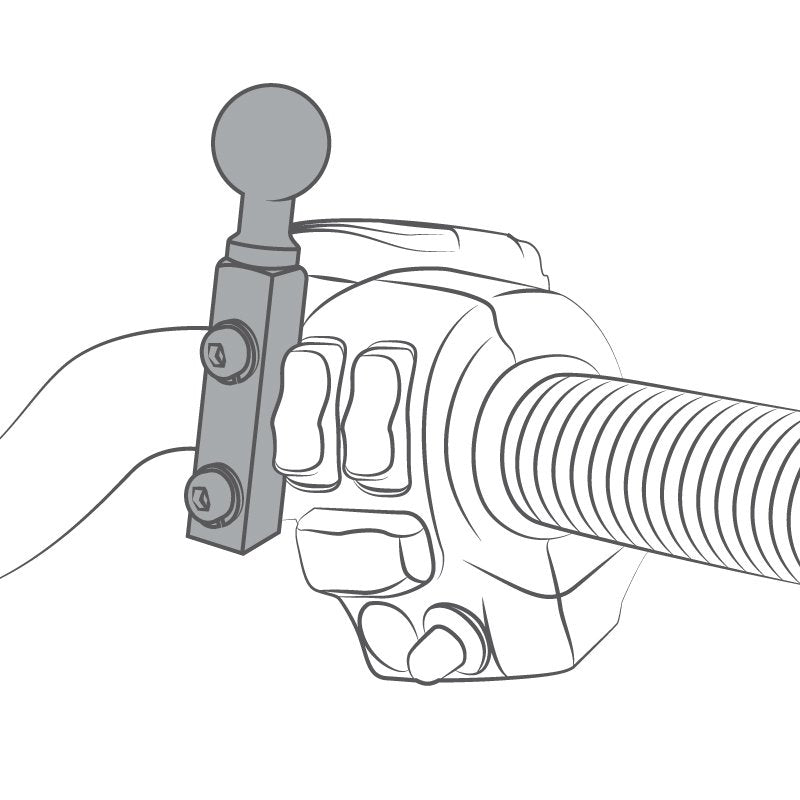

  • Note - Part number reflects product packaged in a retail box for store shelf display. To see if the RAM-B-174-UN7 will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94" and a maximum of 1.58". RAM highly recommends using the provided Tether for all open cockpit applications while using this product.
  • Weight: 1.0 lbs.
