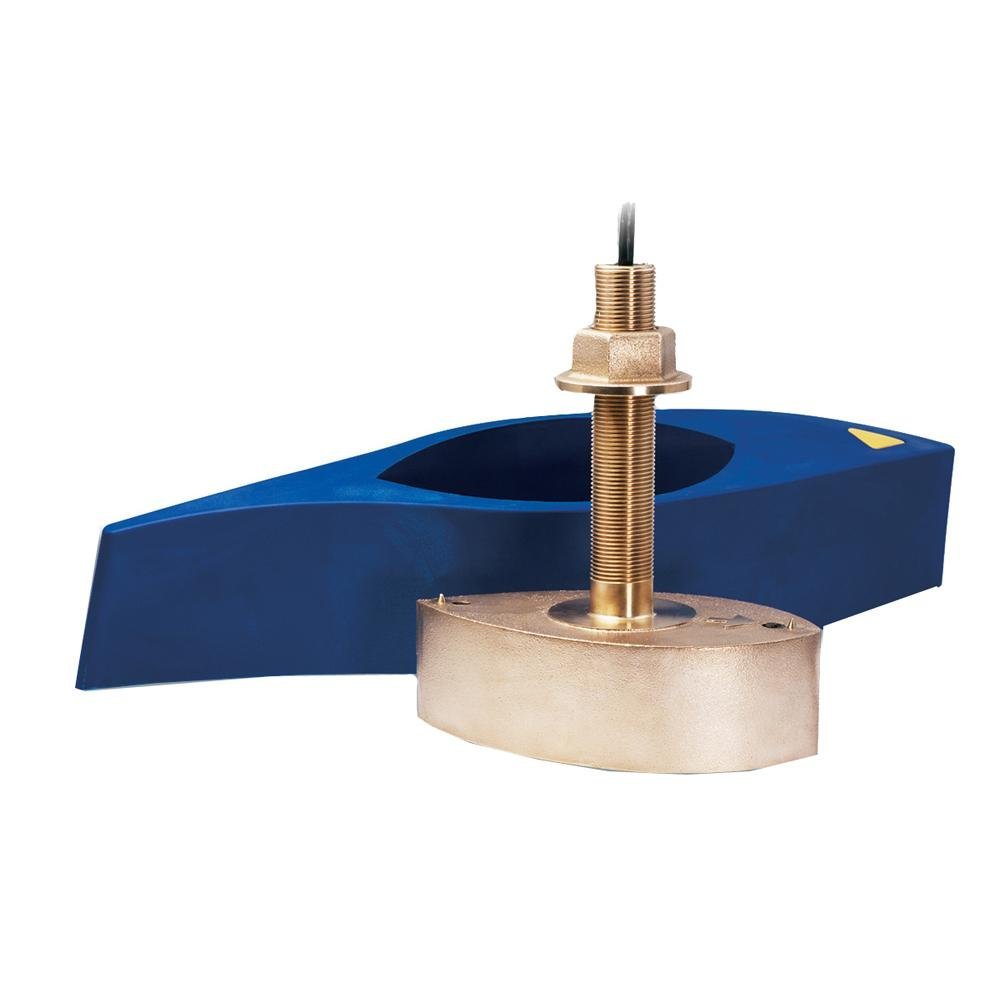

Raymarine - B258 Bronze High Performance Thru-Hull w/Fairing - E66082

The B258 features 4 internal ceramics for increased sensitivity and better deep water performance. The included fairing block ensures uninterrupted performance, even at speed.

The B258 is 25 times more sensitive than a single-element 50/200 kHz transducer. This innovative 1 kW transducer makes 600 W fishfinders perform like their more powerful big brothers "” especially at 50 kHz. How does it do it? The B258 uses a high-performance ceramic-element construction. The resulting narrow beams will clearly distinguish individual fish and bottom fish from their habitat at depths down to 670 m (2,200').

Included with the B258 is a custom fit, high-performance fairing block. When installed properly, this transducer is capable of clear images and a clean bottom trace at speeds over 30 knots (34 MPH.)

Compatible with the following Echo Sounders:

• DSM250 and DSM300
• SL Series: SL755RC, SL760RC , SL1250, and SL1250RC
• hsb2 Plus Series: L755RC, L760, L760RC, L1250,and L1250RC
• hsb2 HDFI Series: DSM250, L770D, L770DRC, L1260D, and L1260DRC

Features:

• Compatible hull material - wood and fiberglass
• Max Power - 1000 W
• Frequency - 200/50 kHz
• Beam Angles - 200 kHz 15 x 21 50 kHz 3 x 5 (Elipitical beam measured fore-to-aft and port-to-starboard)
• Cable - 30ft (10m) cable with connector
