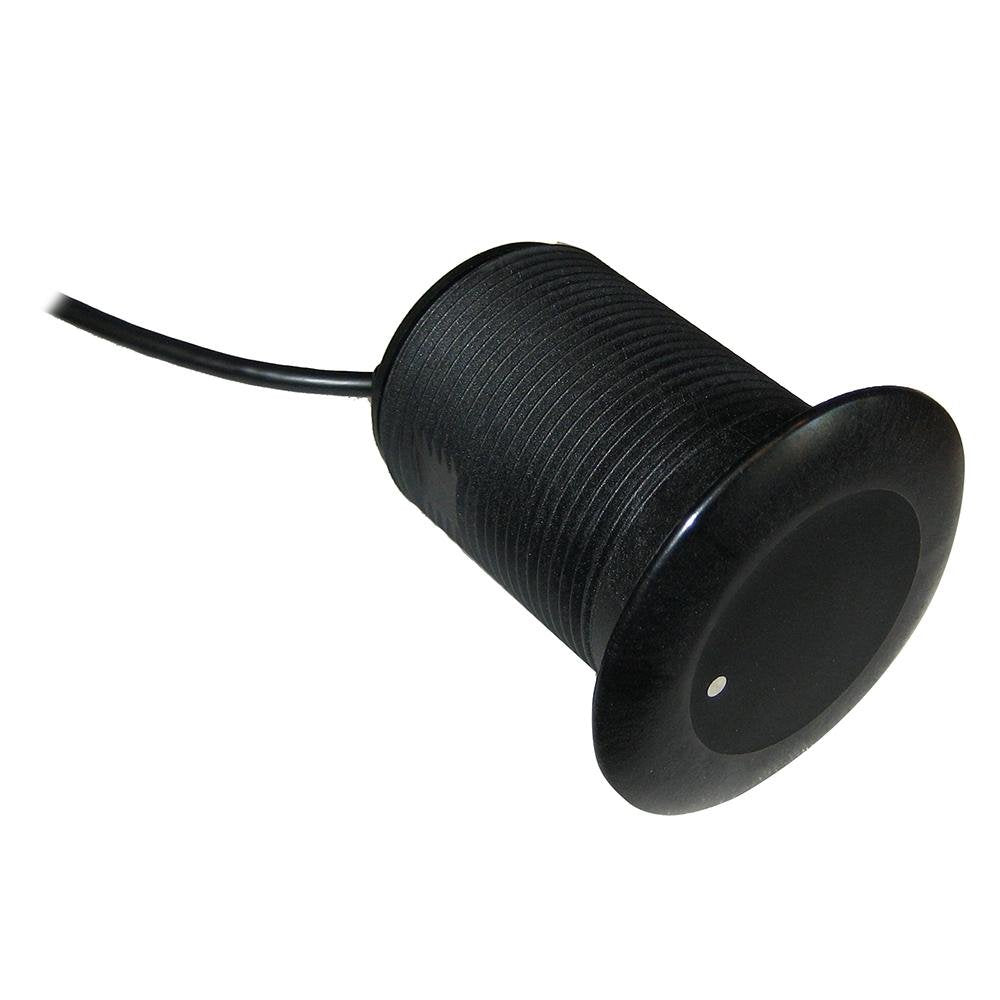

Raymarine - CPT-S High CHIRP Plastic Thru-Hull Flush Mount Transducer - 12 Angle - A80448

The CPT-S High CHIRP transducer provides high-resolution sonar imagery in a small and inexpensive package.  With a simple design, the CPT-S is easy to install, while still offering excellent performance at speed. This CPT-S is a low-profile, flush-mounted plastic Thru Hull High CHIRP transducer compatible with Raymarine's CP100 sonar module and embedded CHIRP MFDs. This single-element conical CHIRP transducer provides a 25-degree fish-targeting beam with a maximum depth of 900 feet. This model CPT-S accommodates hulls with a deadrise between 7-17 degrees.

Also connects to Axiom Pro S series Units with optional adapter cable A80490.

Element S

The CPT-S transducer family connects directly to Element S chart plotters

Axiom Pro S and Axiom 2 Pro S

CPT-S transducers are the recommended transducer for Axiom Pro S and Axiom 2 Pro S chart plotters.  Use the A80490 adaptor cable to connect CPT-S transducers to Axiom Pro.

Element HV

Use the A80559 transducer adaptor cable to connect to Element HV models.  Please note the CPT-S transducer only supports High CHIRP sonar. HyperVision sonar requires an HV series transducer.

All Axiom Chartplotters with Sonar

CPT-S transducers connect directly to Axiom DV models. All other sonar-equipped Axiom displays can use the A80490 transducer adaptor cable to connect CPT-S transducers. Please note the CPT-S transducer only supports High CHIRP sonar.

Features:

• Supports single High CHIRP sonar with a 25 conical beam
• Available with 0, 12, and 20 angled elements to compensate for various hull deadrise angles.
• Integrated seawater temperature sensor
• Up to 900 ft (274 m) depth range
• Includes 10 meter cable
