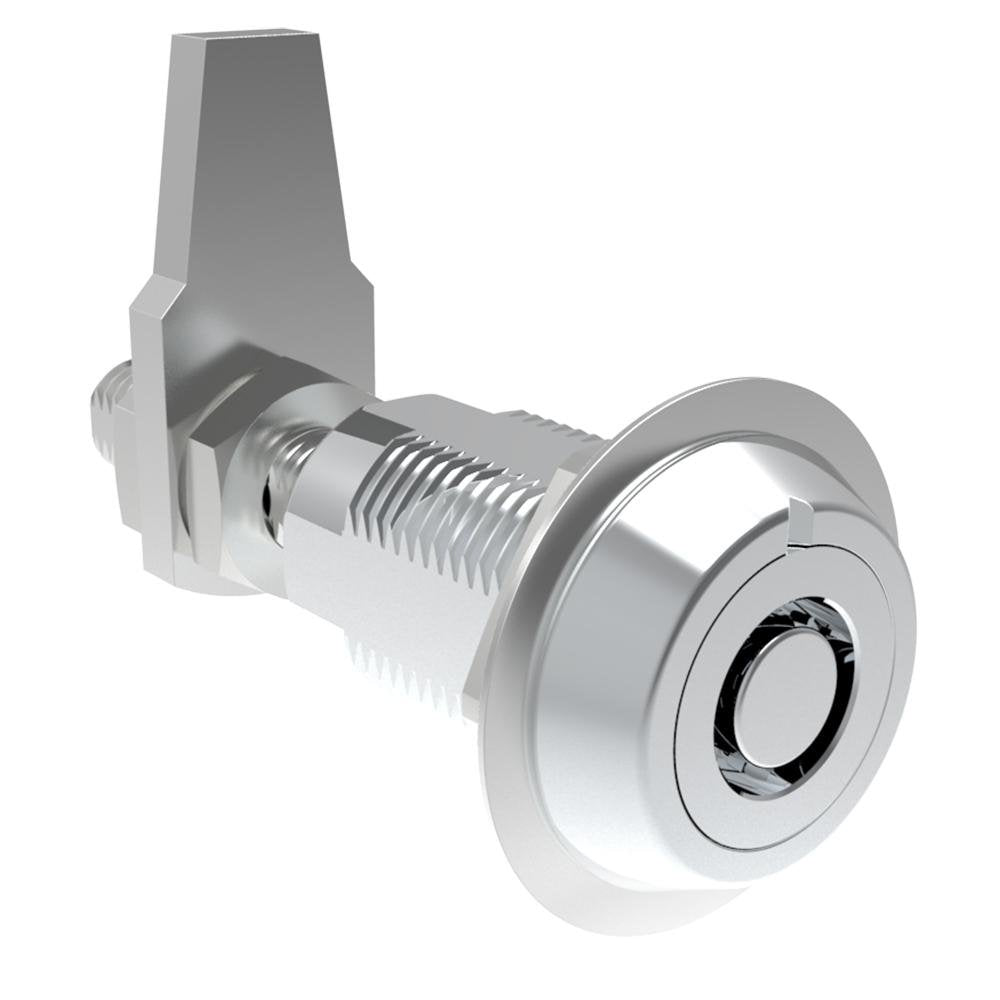

Southco - Compression Latch - Large - Vise Action - Stainless Steel Passivated Silver - E3-15-30

The smooth operation of the VISE ACTION design aligns the pawl behind the frame and draws it up tight with a single continuous half-turn motion. Its compression action provides consistent 6.4 mm (.25 in) pull-up for environmental sealing in gasketed applications, and helps reduce or eliminate noise and rattles caused by vibration. Over-center latching resists accidental opening due to shock or vibration.

Specifications:

• Material - Stainless Steel
• Finish - Passivated
• Color/Appearance - Silver
• Access Restriciton - Key Locking
• Access Restriction - Tool
• Grip Type - Adjustable
• Mounting Style - Single Hole Mount
• Max. Outer Panel Thickness - 18.000 mm (0.71")
• Min. Outer Panel Thickness - 1.000 mm (0.04")
• Head Style - Southco Tubular Key
• Cam Attached - No
• Rotation - Type A - Turn Clockwise to Latch
• Size Series - 19.1 mm
• Compliance Specification - UL FTTA2/FTTA8 Type 1
• Grip - Maximum: 59.600 mm (2.35")
• Grip - Minimum: 43.900 mm (1.73")
