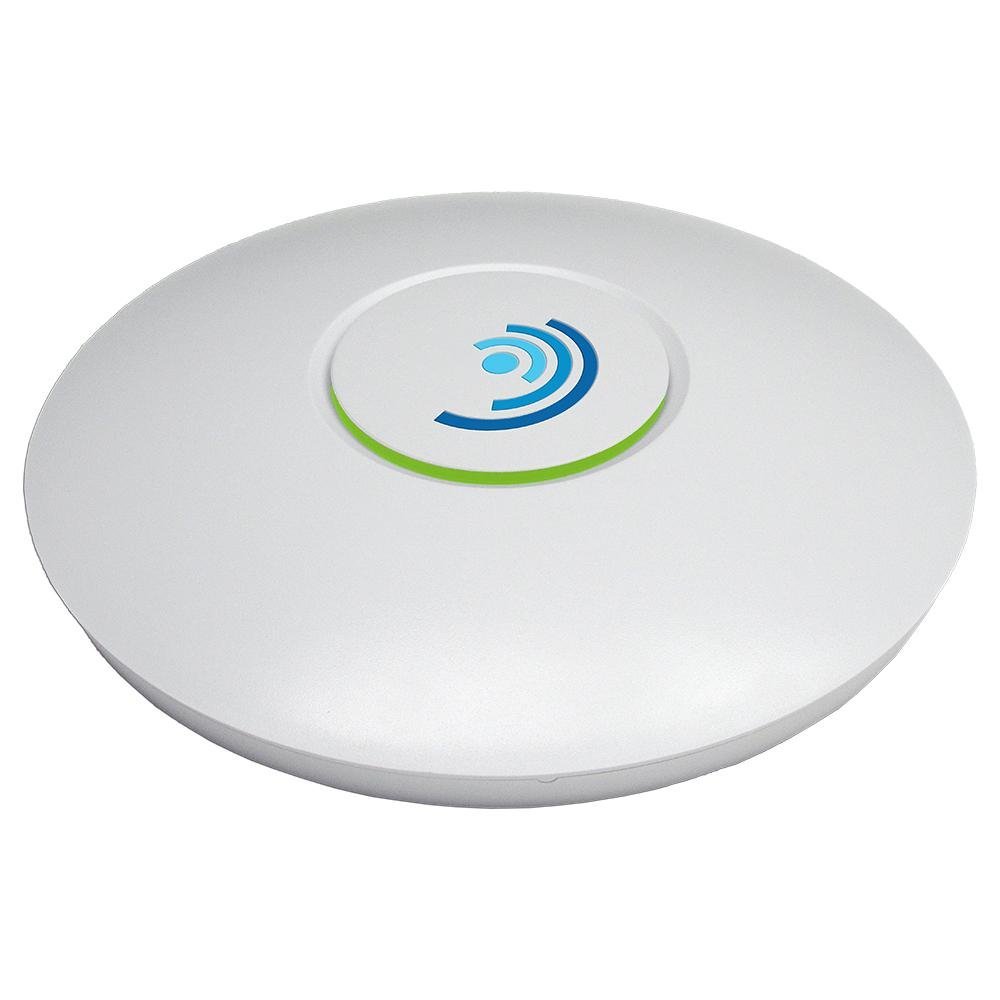

MAP2 Marine Access Point

Single-band access point for onboard connectivity. Additional AP'S may be required to ensure full vessel coverage. Works with LINK, AN-2 Series, ad the AN-7000.

Quickly and easily connect to your existing network to add or expand wireless coverage. When paired with an Aigean Networks Wi-Fi Client or Router, you can manage any connected access points directly through their interfaces.

Technical Specifications:

• System Information

• Processor Specs Atheros MIPS 74Kc, 550MHz

• Memory Information 128MB SDRAM, 8MB Flash

• Networking Interface 1 x 10/100 BASE-TX (Cat 5, RJ-45) Ethernet
  Radio (2.4 GHz)

• Protocol(s) 802.11b/g/n Wi-Fi with MIMO (2x2)

• Tx Power s20 dBm (100 mW)

• Receive Sensitivity minimum -96 dBm

• Antennas 2x Integrated 3 dBi Omni

Physical/Electrical/Environmental

• RF Connector None - Internal Antennas

• Enclosure Size 11.9" x 9.3" x 1.5" (300mm x 266mm x 36.7mm)

• Weight 0.64lbs, 0.95lbs with Mounting Kits (0.29kg, 0.43kg)

• Enclosure Characteristics Plastic saucer-style enclosure

• Power Method Passive Power over Ethernet (12-24V)

• Operating Temperature 14xF to 158xF (-10xC to 70xC)

• Operating Humidity 5 to 80% Noncondensing

• Shock and Vibration ETSI300-019-1.4

• Environment Resistance IP60 (NEMA 1)

• Powerful 2.4 GHz 802.11b/g/n 2x2 MIMO

• 100mW (20 dBm) output,

• Integrated control through Wi-Fi Client and Router interfaces

• Simple setup through your LINK or AN-2

• Mounting bracket

• 110-220V AC PoE injector included

• 2 Year Limited Warranty
