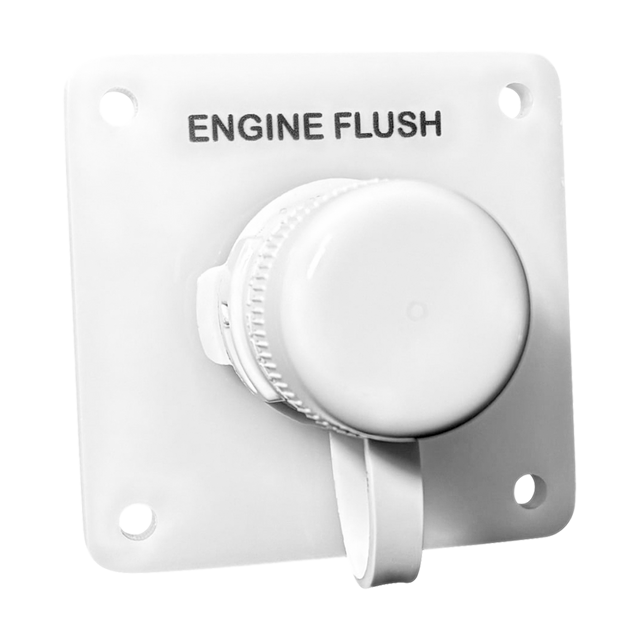

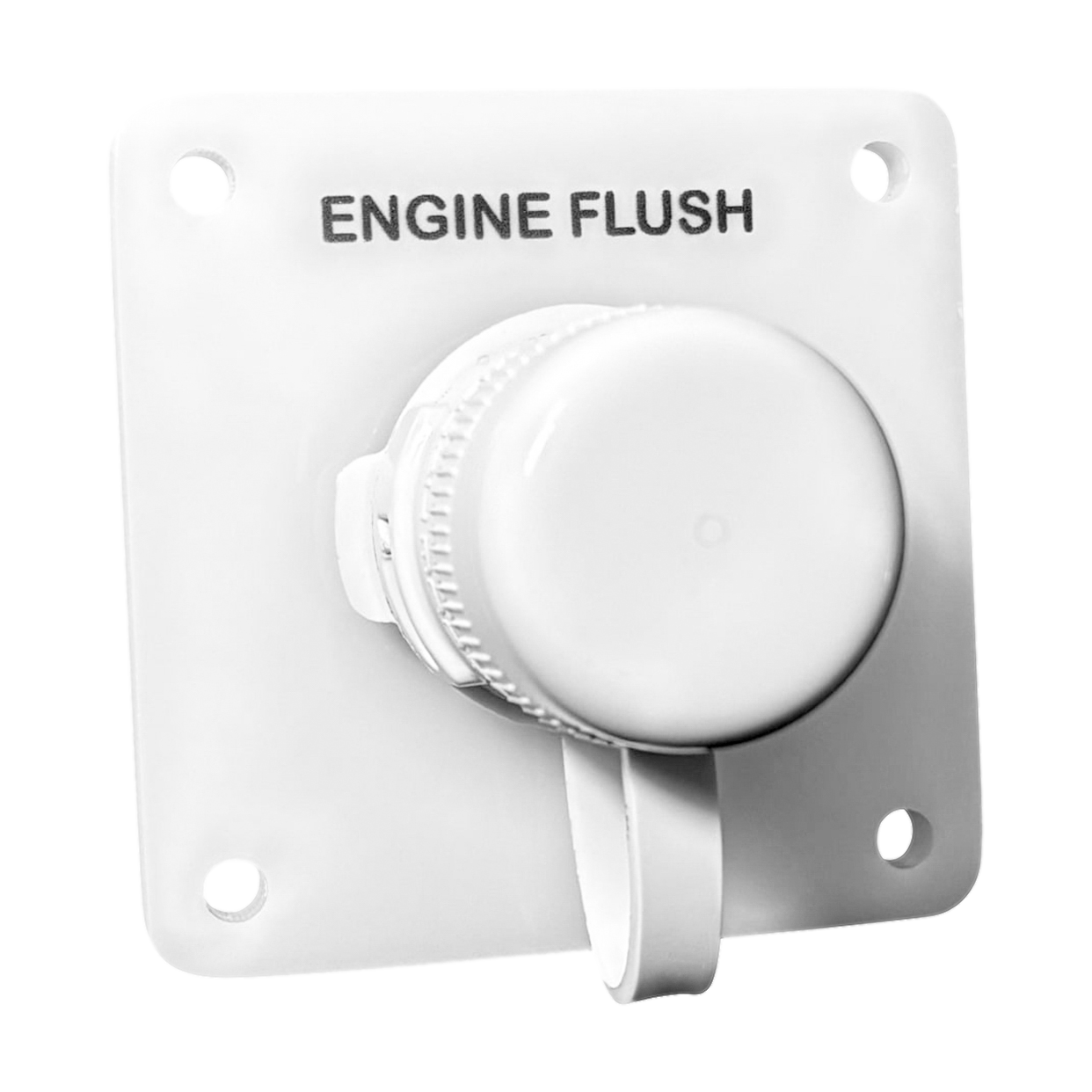

Flushmaster – Flush Port Reroute 3/8" | Single Outlet | Vertical | White Acrylic Plate

This single outlet reroute delivers the same functional upgrade in a white acrylic finish that blends cleanly into lighter rigging setups and modern boat interiors. By relocating your 3/8" outboard flush port to a more accessible position inside the boat, it removes the need to reach over the engine or work around tight spaces at the transom.

It’s a simple adjustment, but one that makes routine flushing quicker and easier to stay consistent with—especially after saltwater runs. The clean, integrated look also helps maintain a more finished appearance across your rigging, which stands out more over time than you might expect.

Key Features

• Safer, More Convenient Flushing: Moves flush access from the engine area to a centralized panel, reducing awkward reach and improving everyday maintenance.
• Outboard Flush Port Relocation: Helps organize flush connections for single outboard, keeping the setup cleaner and easier to use after every trip.
• Universal Quick Connect Design: Locking-cap fittings use a double O-ring seal for a secure, reliable connection that is built for repeated use.
• Premium Acrylic Finish: Laser-cut white acrylic creates a clean, custom-style panel that looks finished on the boat.
• Made for Life on the Water: Cut from 1/4" UV-stable acrylic and paired with 316 stainless hardware to stand up to sun, salt spray, and marine conditions.
• Automation Ready: Centralized flush points help keep hose runs short and make the setup easier to pair with Flushmaster controllers.

*Quick Connect adapters sold separately.

Included in the Box

• Flush Port Reroute Plate
• (1) Quick Connect with barb
• (1) 316 Stainless Steel Nut
• (1) Rubber Gasket
• (1) Female Connector for Hose End

Safety Note: Plumbing requirements vary by engine and vessel. Professional installation by a qualified marine technician is recommended.

How It Works

The Flush Port Reroute moves your engine’s OEM flush port to a clean, accessible panel inside the boat. Reinforced marine-grade hose is routed from the engine flush connection through the existing rigging tube and secured to the reroute plate, creating a centralized flush point without climbing, stretching, or leaning over the motor.

• Choose the mounting location for the reroute plate.
• Access the flush line inside the engine cowling and integrate reinforced hose using standard rigging practices.
• Guide the hose through the cowling into the rigging tube and run it to the reroute plate.
• Use the included template to prepare the mounting area.
• Secure the hose line to the 3/8" barb fitting and mount the plate.
• When it is time to flush, connect your garden hose to the new flush point for easier dockside maintenance.
