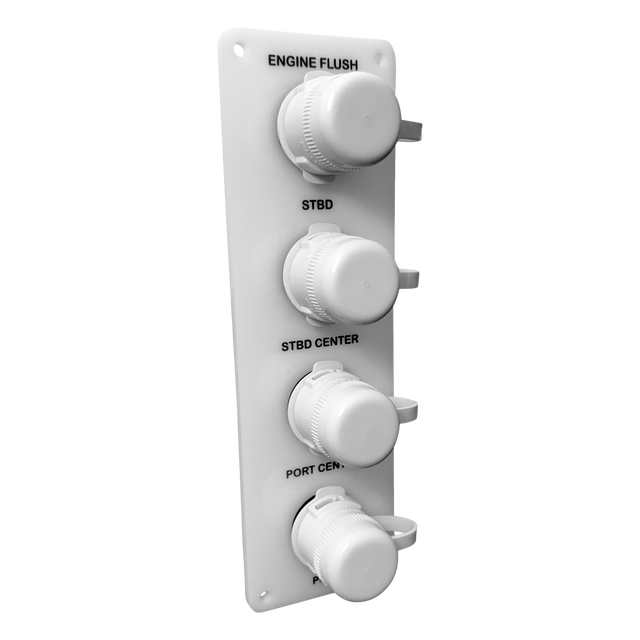

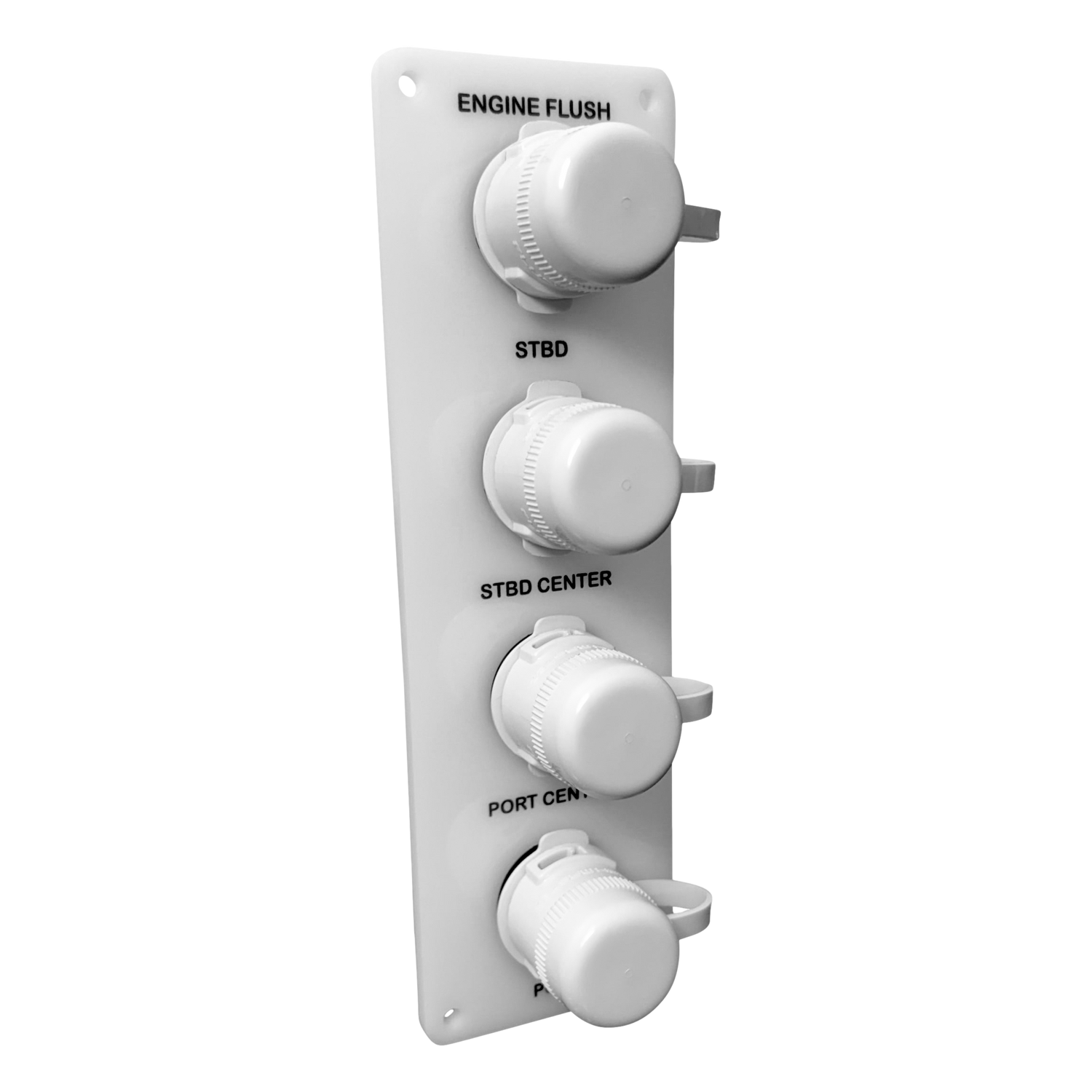

Flushmaster – Flush Port Reroute 1/2" | Quad Outlet | Vertical | White Acrylic Plate

This quad outlet vertical reroute creates a centralized flushing system for four outboards, turning what would normally be a scattered, multi-step process into something much more manageable. By bringing all four flush ports into one organized panel, it reduces clutter across the transom and keeps everything within reach.

For larger boats, this kind of setup makes a noticeable difference in both efficiency and consistency. Flushing becomes quicker, easier to stay on top of, and far less of a hassle at the end of the day. The white finish keeps the overall rigging clean and cohesive, especially on lighter builds.

Key Features

• Quad Outboard Flush Hub: Centralizes four outboard flush ports into one clean access point.
• Safer, More Convenient Flushing: Helps eliminate leaning over engines, standing on brackets, or stretching across slippery areas during maintenance.
• Universal Quick Connect System: Uses a locking-cap design with dual O-rings for a secure, leak-resistant connection that is built for repeated use.
• Compact Vertical Layout: Works well where mounting space is narrow or stacked vertically.
• Premium, Factory-Style Appearance: The Clean white acrylic finish gives the reroute panel a clean, custom-rigged look.
• Made for Life on the Water: Cut from 1/4" UV-stable acrylic with 316 stainless steel hardware to handle sun, salt spray, and corrosion.
• Automation Ready: Creates a centralized connection point for Flushmaster controllers and helps keep hose runs shorter and more organized.

*Quick Connect adapters sold separately.

What's Included

• Quad Outlet Flush Port Reroute Plate
• (4) Quick Connect with barb
• (4) 316 Stainless Steel Nut
• (4) Rubber Gasket
• (4) Female Connector for Hose End

Safety Note: Plumbing requirements vary by engine and vessel. Professional installation by a qualified marine technician is recommended.

How It Works

The Flush Port Reroute moves your engine’s OEM flush ports to a clean, accessible panel inside the boat. Reinforced marine-grade hose is routed from each engine’s flush connection through the rigging tube and secured to the reroute plate, creating a centralized flush point.

• Choose your mounting location for the reroute plate
• Access the flush line inside each engine cowling and integrate reinforced hose using standard rigging practices
• Guide the hose through the cowling into the rigging tube and run it to the reroute plate
• Use the included template to prepare the mounting surface
• Secure each hose line to the 1/2" barbs on the reroute plate and mount the plate
• When it’s time to flush, connect your garden hose to the new flush point — no climbing, stretching, or leaning over the motor
