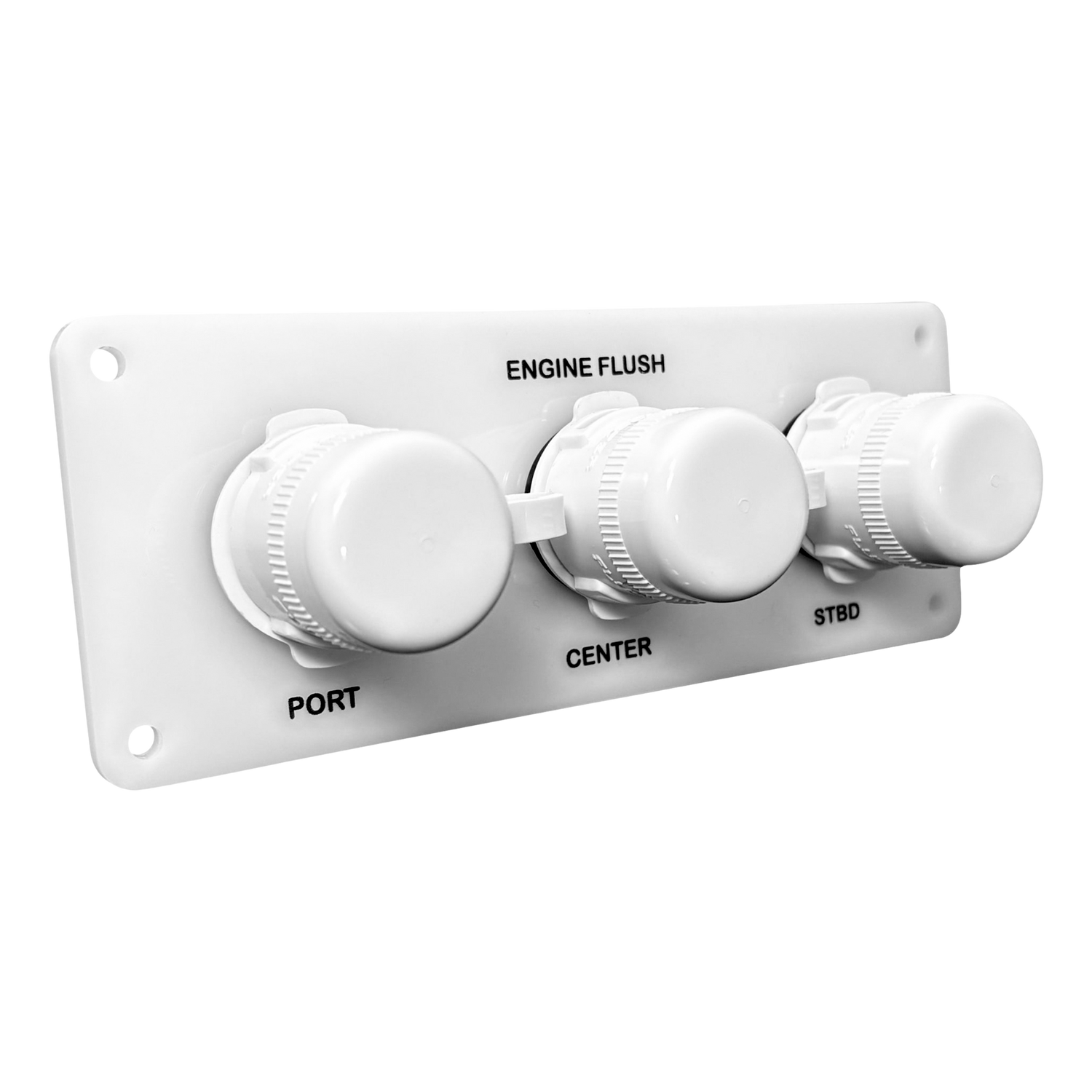

Flushmaster – Flush Port Reroute 1/2" | Triple Outlet | Horizontal | White Acrylic Plate

This horizontal triple outlet setup spreads three flush connections across a wider panel, giving you more room to work with during installation and daily use. By spacing everything out, it helps reduce crowding around the rigging area and allows for smoother hose routing, especially on boats with wider layouts.

It’s a strong option when vertical mounting space is limited or when your setup benefits from a more spread-out configuration. The result is a cleaner, more accessible flushing system that feels easier to use and keeps everything organized without forcing connections too close together.

Key Features

• Triple Engine Flush Control: Moves three engine flush ports to a central panel for easier multi-engine maintenance.
• Safer, More Convenient Flushing: Helps eliminate leaning over engines, standing on brackets, or stretching across slippery areas during maintenance.
• Universal Quick Connect System: Uses a locking-cap design with dual O-rings for a secure, leak-resistant connection that is built for repeated use.
• Wide Horizontal Layout: Fits wider surfaces where a side-by-side panel layout makes more sense.
• Premium, Factory-Style Appearance: The Clean white acrylic finish gives the reroute panel a clean, custom-rigged look.
• Made for Life on the Water: Cut from 1/4" UV-stable acrylic with 316 stainless steel hardware to handle sun, salt spray, and corrosion.
• Automation Ready: Creates a centralized connection point for Flushmaster controllers and helps keep hose runs shorter and more organized.

What's Included

• Triple Outlet Flush Port Reroute Plate
• (3) Quick Connect with barb
• (3) 316 Stainless Steel Nut
• (3) Rubber Gasket
• (3) Female Connector for Hose End

Safety Note: Plumbing requirements vary by engine and vessel. Professional installation by a qualified marine technician is recommended.

How It Works

The Flush Port Reroute moves your engine’s OEM flush ports to a clean, accessible panel inside the boat. Reinforced marine-grade hose is routed from each engine’s flush connection through the rigging tube and secured to the reroute plate, creating a centralized flush point.

• Choose your mounting location for the reroute plate
• Access the flush line inside each engine cowling and integrate reinforced hose using standard rigging practices
• Guide the hose through the cowling into the rigging tube and run it to the reroute plate
• Use the included template to prepare the mounting surface
• Secure each hose line to the 1/2" barbs on the reroute plate and mount the plate
• When it’s time to flush, connect your garden hose to the new flush point — no climbing, stretching, or leaning over the motor
